Power Steering Pressure Switch Connector

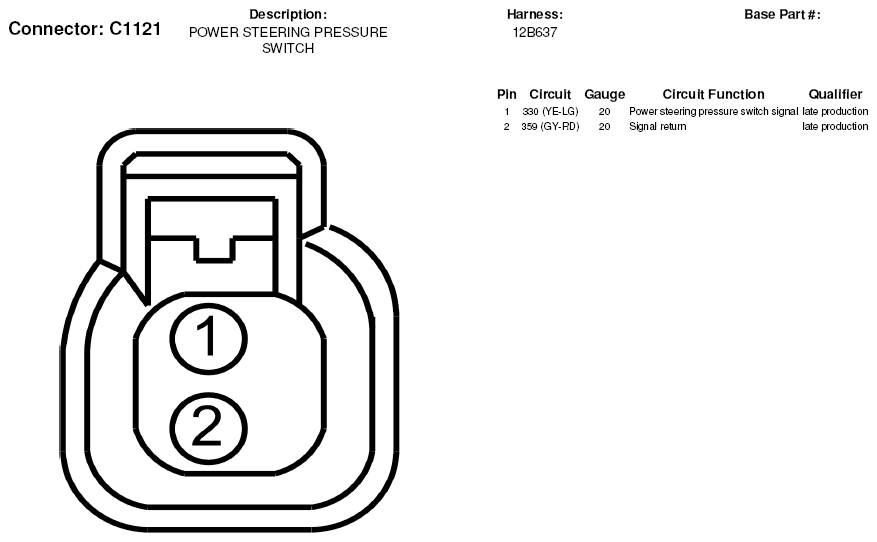

Fig 1: Power Steering Pressure Switch Connector End View (C1121)
G05600416Courtesy of FORD MOTOR CO.

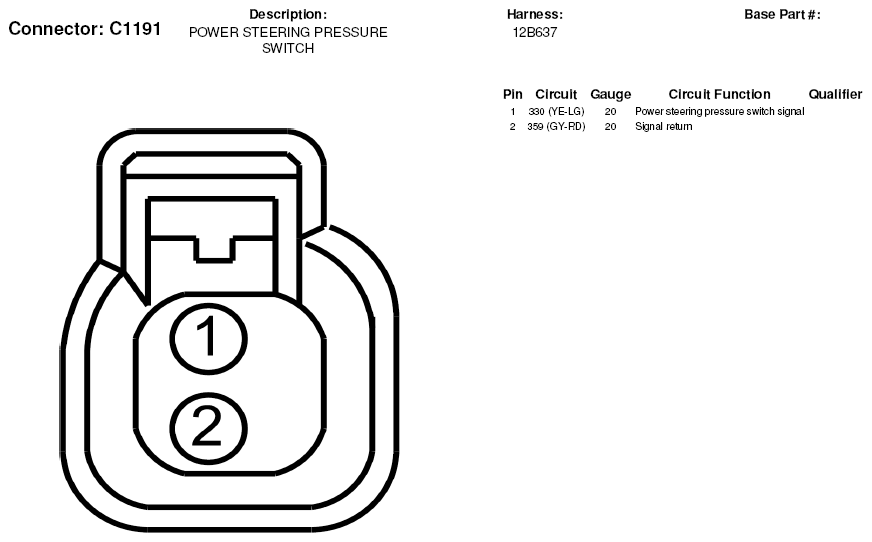

Fig 2: Power Steering Pressure Switch Connector End View (C1191)
G05600418Courtesy of FORD MOTOR CO.
