Over Head Console Connector

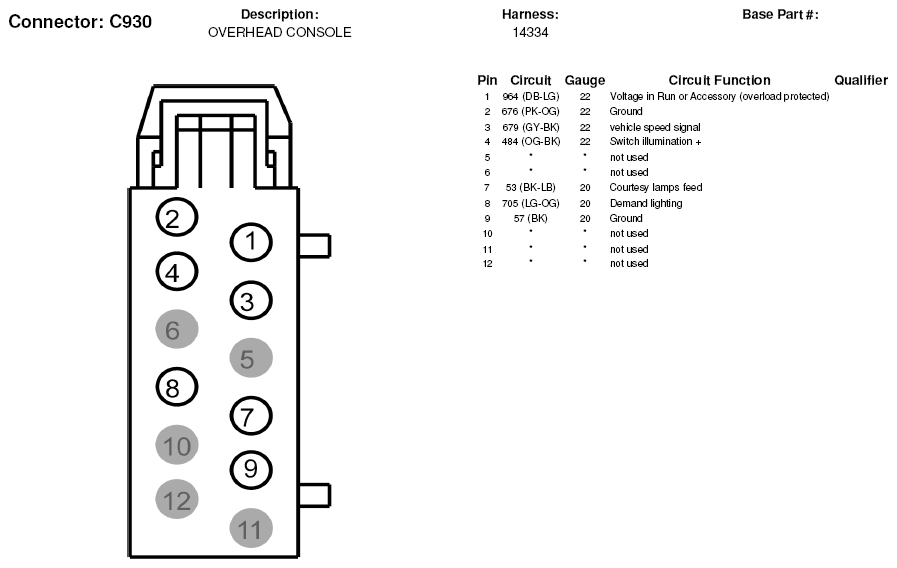

Fig 1: Over Head Console Connector End View (C930)
G05600392Courtesy of FORD MOTOR CO.

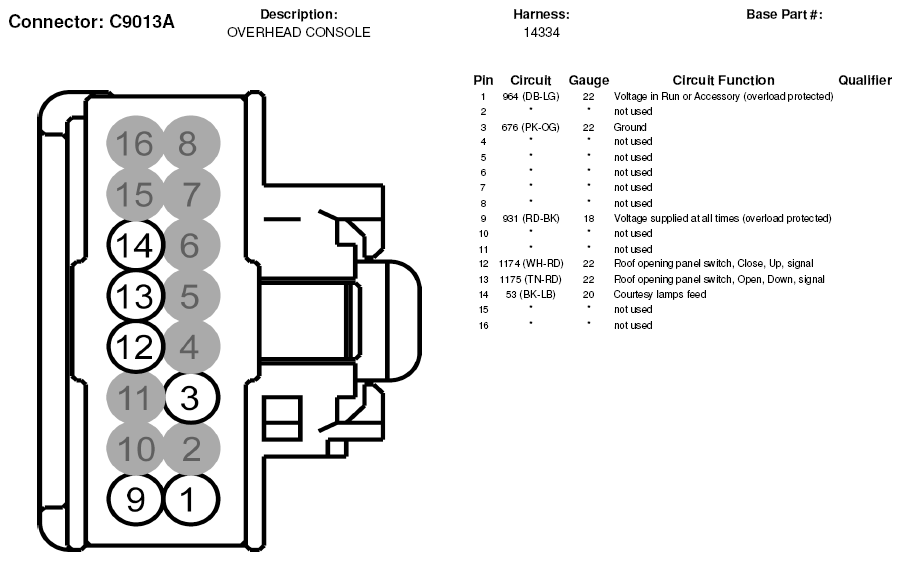

Fig 2: Over Head Console Connector End View (C9013A)
G05600515Courtesy of FORD MOTOR CO.

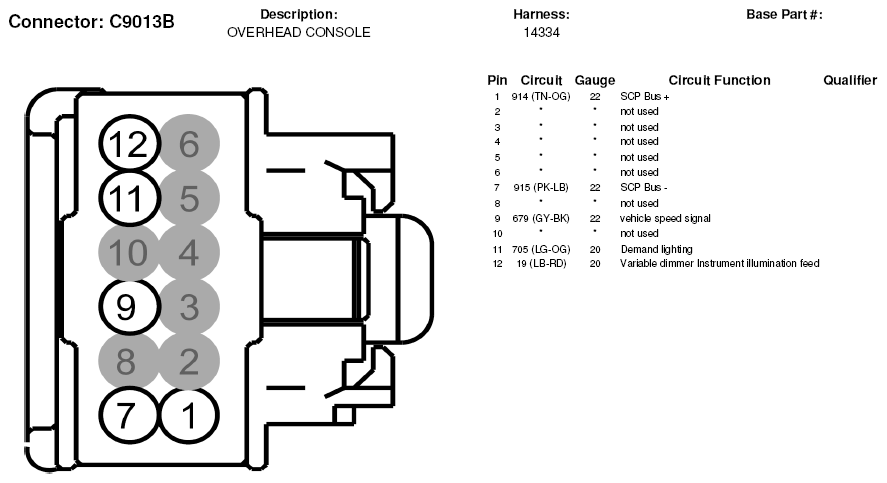

Fig 3: Over Head Console Connector End View (C9013B)
G05600516Courtesy of FORD MOTOR CO.
