Left Rear Window Adjust Switch Connector

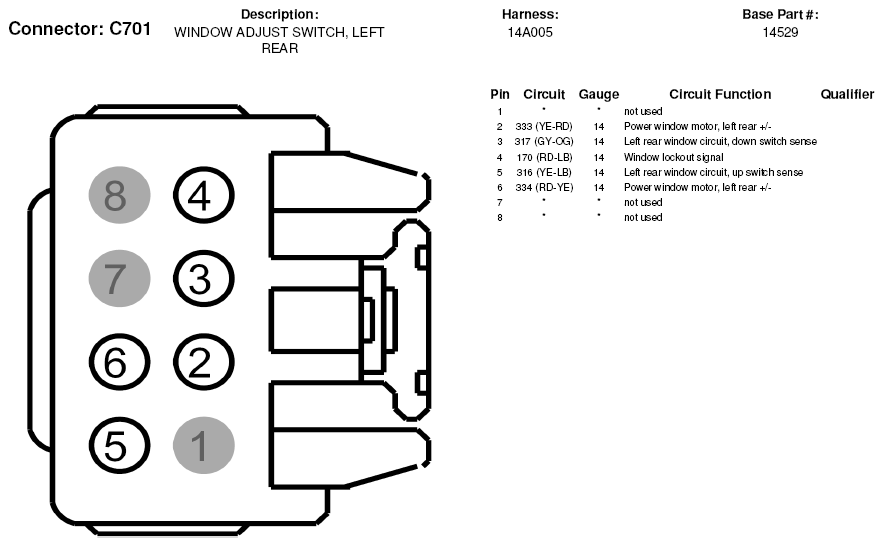

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)

G05600375

Courtesy of FORD MOTOR CO.
