Inline Connector

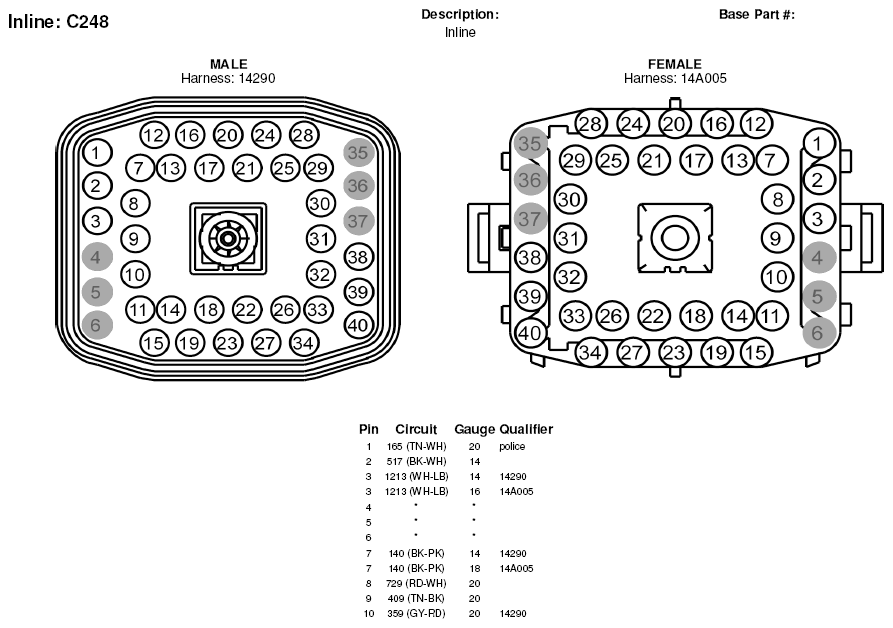

Fig 1: Inline (1 Of 2) Connector End View (C248) (1 Of 2)
G05600261Courtesy of FORD MOTOR CO.

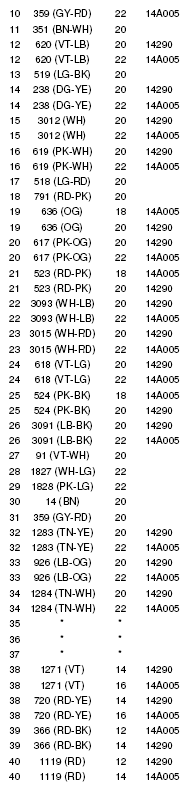

Fig 2: Inline (2 Of 2) Connector End View (C248) (2 Of 2)
G05600262Courtesy of FORD MOTOR CO.

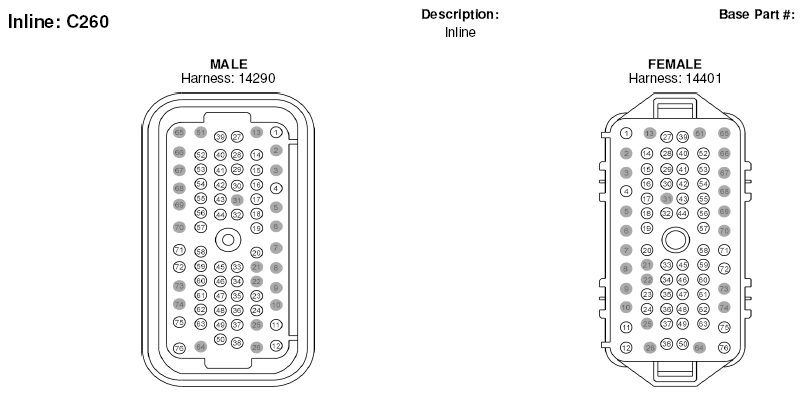

Fig 1: Inline (1 Of 3) Connector End View (C260) (1 Of 3)
G05600268Courtesy of FORD MOTOR CO.

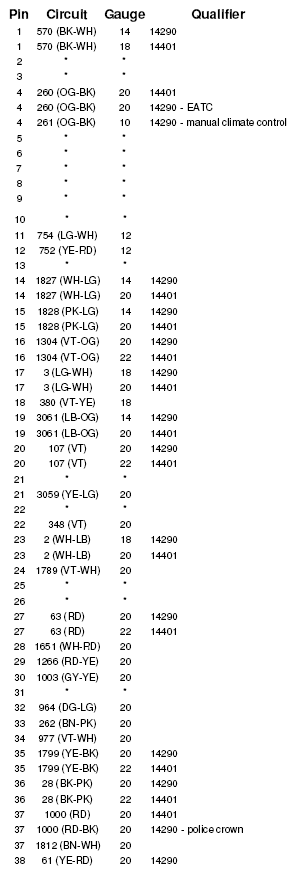

Fig 2: Inline (2 Of 3) Connector End View (C260) (2 Of 3)
G05600269Courtesy of FORD MOTOR CO.

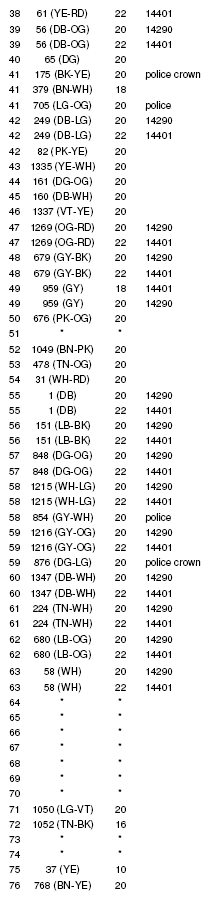

Fig 3: Inline (3 Of 3) Connector End View (C260) (3 Of 3)
G05600270Courtesy of FORD MOTOR CO.
