Front Flasher Connector
Front Flasher Connector

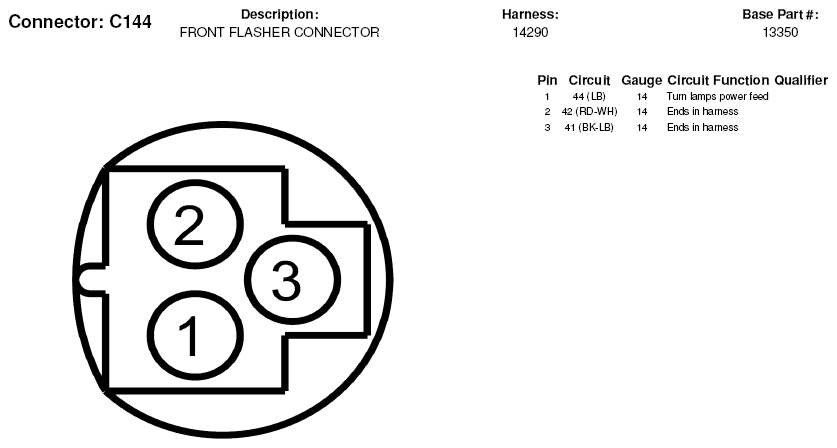

Fig 1: Front Flasher Connector End View (C144)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
