Engine Compartment Perimeter Disarm Switch Connector

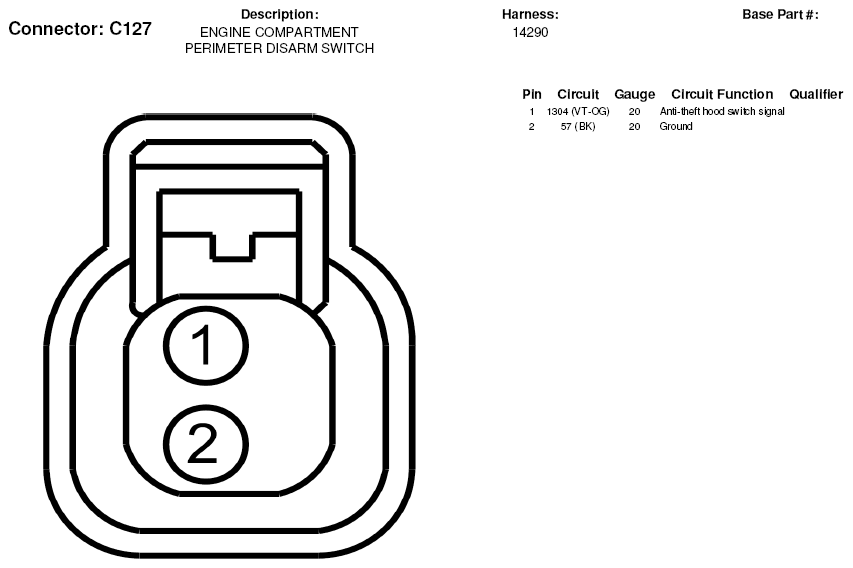

Fig 1: Engine Compartment Perimeter Disarm Switch Connector End View (C127)

G05600201

Courtesy of FORD MOTOR CO.
