Driver Side Lumbar Adjust Switch Connector

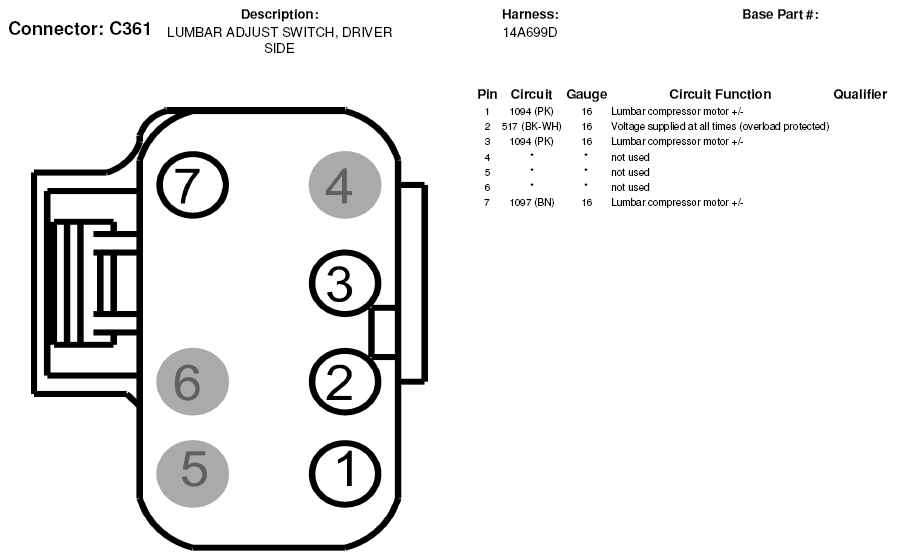

Fig 1: Driver Side Lumbar Adjust Switch Connector End View (C361)

G05600312

Courtesy of FORD MOTOR CO.
