Crown Victoria Base, 4.6 W
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector Views
>>
Adjustable Pedal Switch Connector
Adjustable Pedal Switch Connector

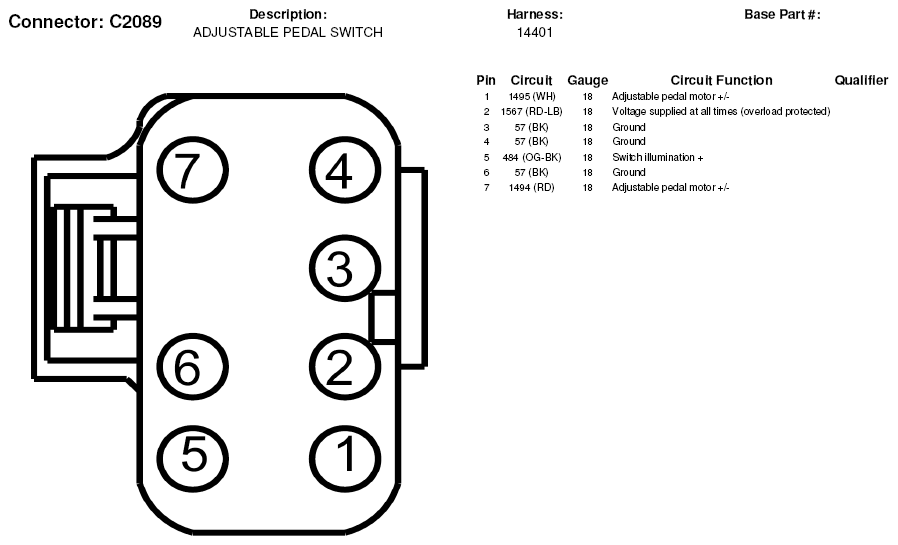

Fig 1: Adjustable Pedal Switch Connector End View (C2089)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
