Brake Shift Interlock Actuator - Column Shift: Notes

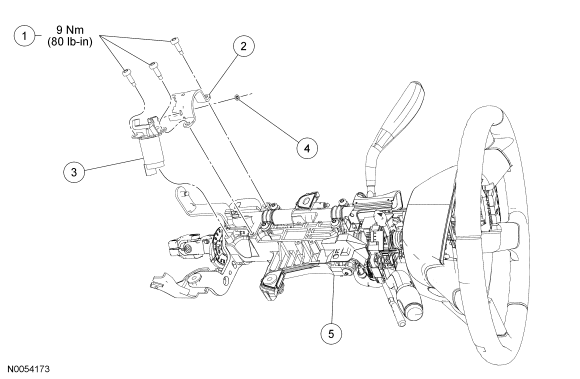

Fig 1: Exploded View Of Brake Shift Interlock Actuator - Column Shift
GF0020540Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Brake shift interlock actuator Torx® screws
2 - Brake shift interlock actuator bracket
3 - Brake shift interlock actuator
4 - Brake shift interlock actuator circlip
5 - Steering column
