Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

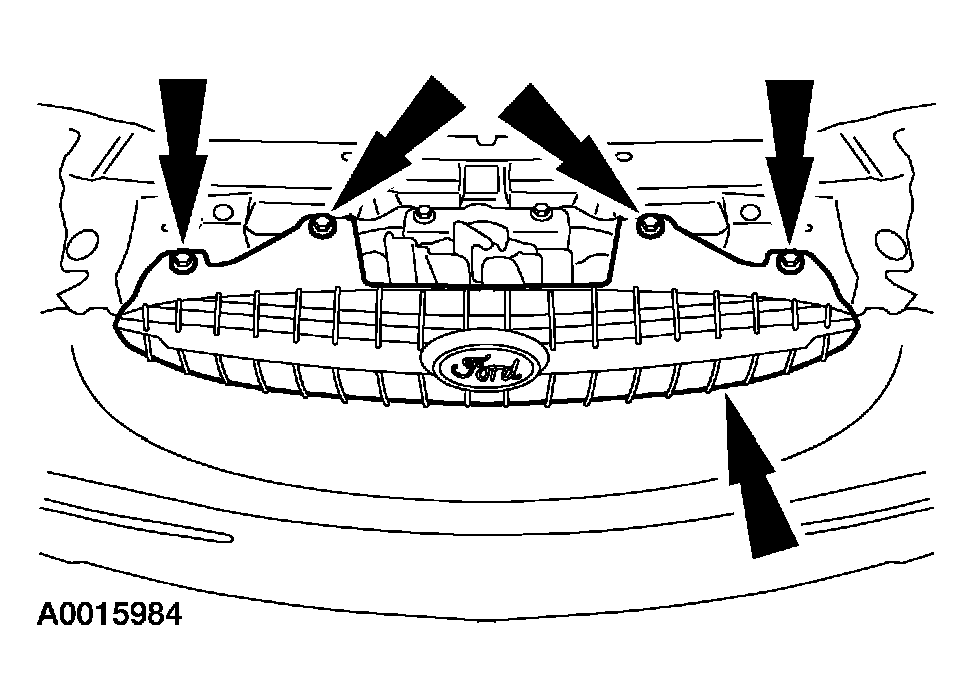

Remove the four scrivets and the grille.

Fig 1: Removing Scrivets And Grille
Courtesy of FORD MOTOR CO.

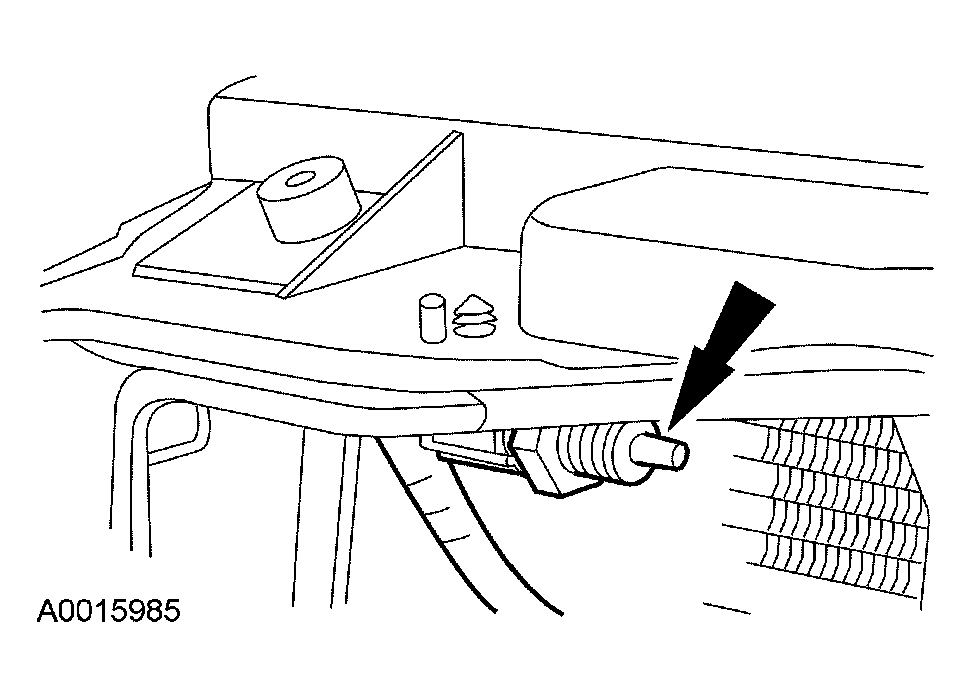

Detach the ambient air temperature sensor (12A647).

Fig 2: Detaching Ambient Air Temperature Sensor
Courtesy of FORD MOTOR CO.

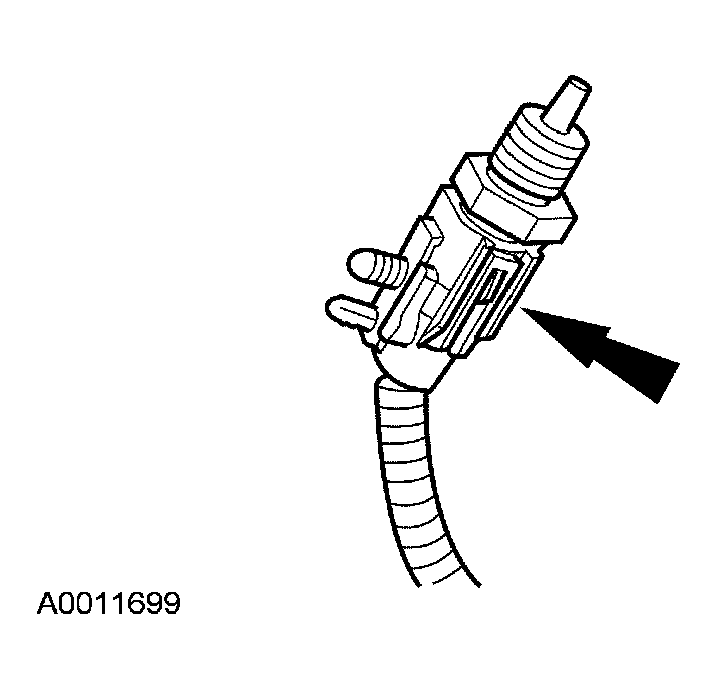

Disconnect the ambient air temperature sensor.

Fig 3: Disconnecting Ambient Air Temperature Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
