Seat Position Sensor: Notes

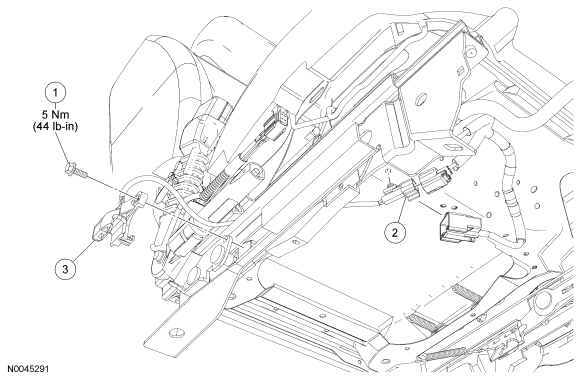

Fig 1: Seat Position Sensor Replacement Components With Torque Specifications
GF0019537Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Seat position sensor bolt
2 - Seat position sensor electrical connector (part of 14B416)
3 14B416 Seat position sensor
