Driver Air Bag Module: Notes

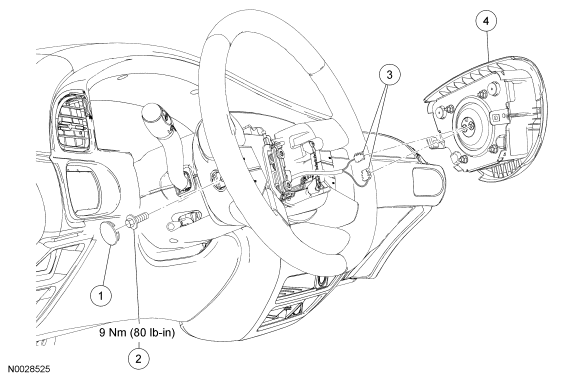

Fig 1: Driver Air Bag Module Replacement Components With Torque Specifications
GF0019500Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3L518 Driver air bag module bolt caps (2 required)
2 - Driver air bag module bolts (2 required)
3 - Driver air bag module electrical connectors (part of 14A664)
4 043B13 Driver air bag module
