Smart Junction Box (SJB) Connector
Smart Junction Box (SJB) Connector

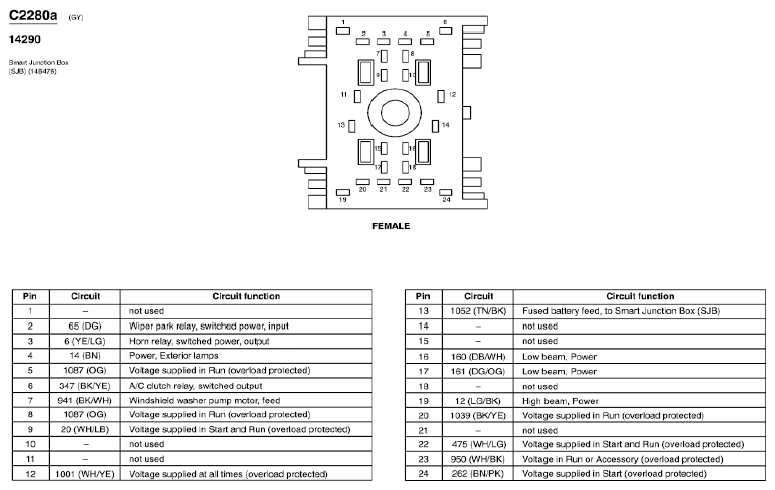

Fig 1: Smart Junction Box (SJB) Connector End View (C2280a)
Courtesy of FORD MOTOR CO.

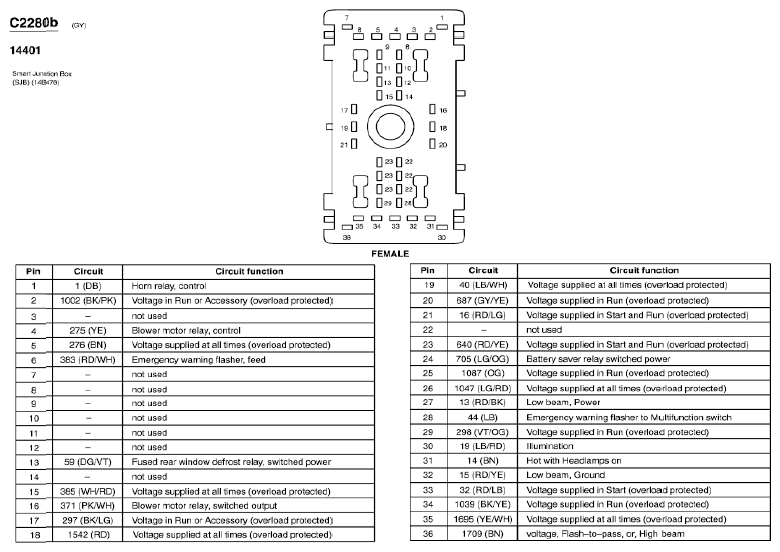

Fig 2: Smart Junction Box (SJB) Connector End View (C2280b)
Courtesy of FORD MOTOR CO.

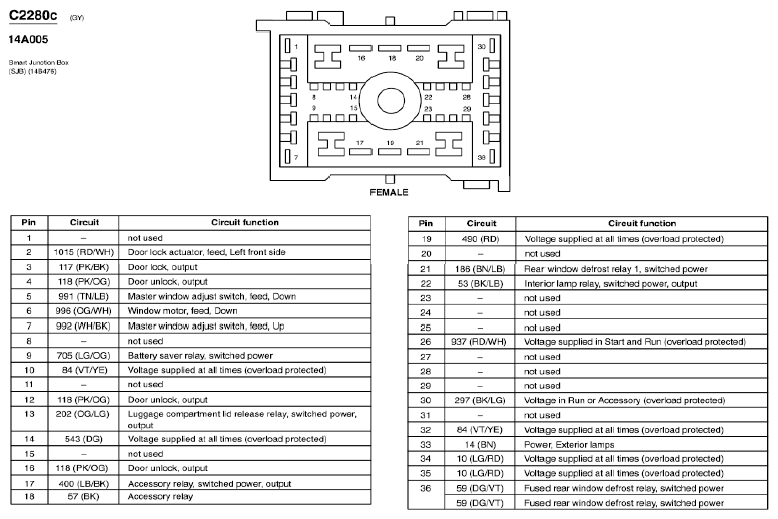

Fig 3: Smart Junction Box (SJB) Connector End View (C2280c)
Courtesy of FORD MOTOR CO.
Fig 4: Smart Junction Box (SJB) Connector End View (C2260d)
Courtesy of FORD MOTOR CO.

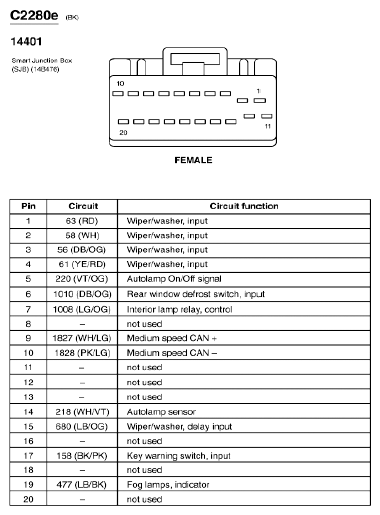

Fig 5: Smart Junction Box (SJB) Connector End View (C2280e)
Courtesy of FORD MOTOR CO.

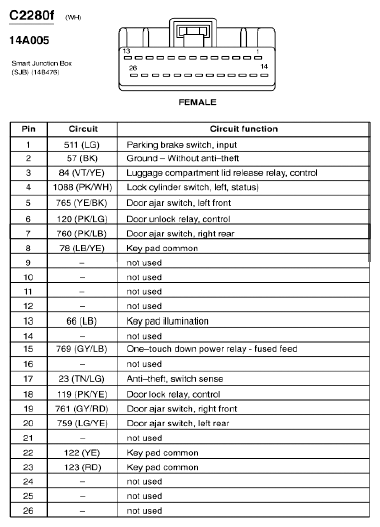

Fig 6: Smart Junction Box (SJB) Connector End View (C2280f)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
