Seat Adjust Switch, Driver Side Front Connector

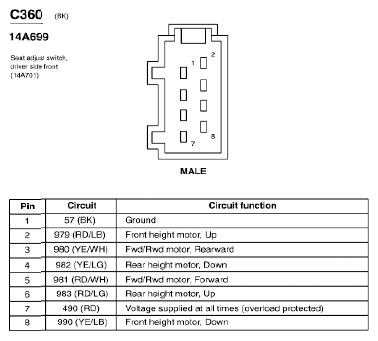

Fig 1: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07850216

Courtesy of FORD MOTOR CO.
