Main Light Switch Connectors
Main Light Switch Connectors

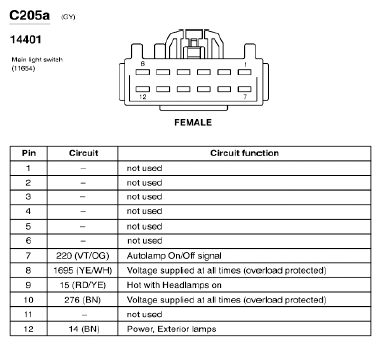

Fig 1: Main Light Switch Connector End View (C205a)
Courtesy of FORD MOTOR CO.
Fig 2: Main Light Switch Connector End View (C205b)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
