Ignition Lock Cylinder - Non Functional: Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Install the gear and the bearing.

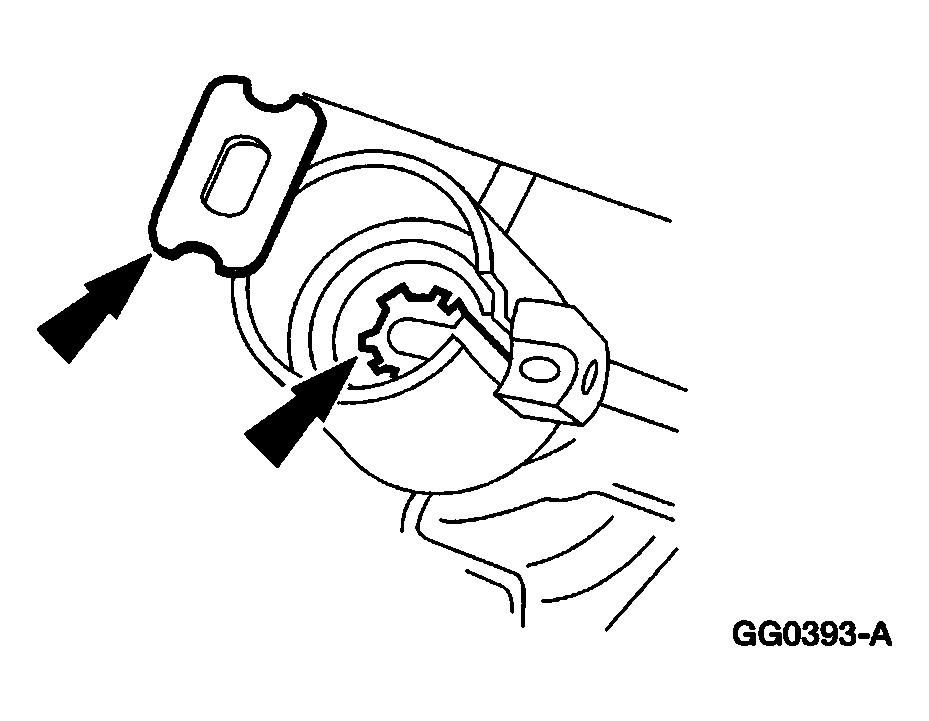

Fig 1: Locating Bearing & Gear
Courtesy of FORD MOTOR CO.
Install the bearing retainer.

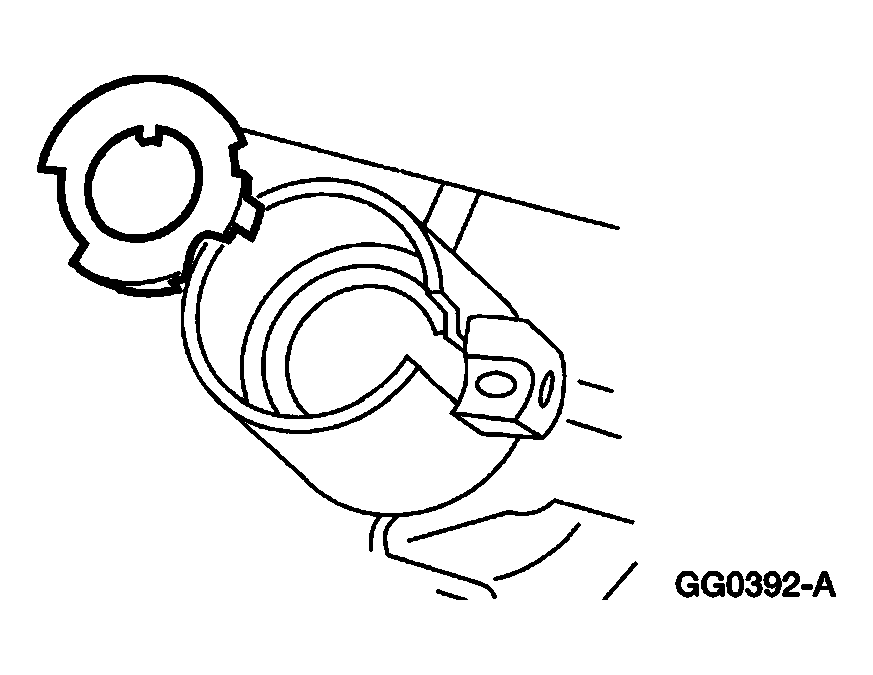

Fig 2: Identifying Bearing Retainer
Courtesy of FORD MOTOR CO.
Install a new ignition switch lock cylinder.
- Verify ignition switch lock cylinder operation.
Fig 3: Identifying Ignition Lock Cylinder
Courtesy of FORD MOTOR CO.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, notes and instructions in the steering wheel removal and installation procedure.

Install the steering wheel. For additional information, refer to STEERING COLUMN .
