Front Impact Severity Sensor: Removal
WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
Vehicle sensor orientation is critical for correct system operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect the sensor mounting bracket and wiring pigtail for deformation. Install and correctly position a new sensor and any other damaged supplemental restraint system (SRS) components whether or not the air bag is deployed.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
WARNING:
To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE:
The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE:
Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- Depower the system. For additional information, Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
- With the hood open, remove the pin-type retainers and the grille assembly.

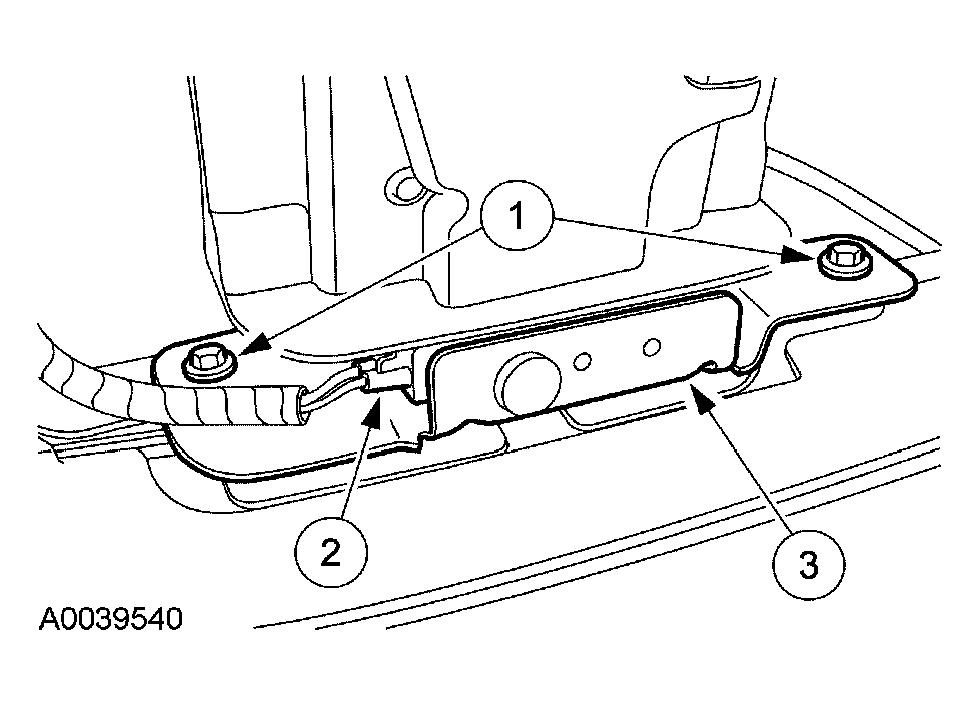

- Remove the front impact severity sensor.
- Remove the bolts.
- Disconnect the electrical connector.
- Remove the front impact severity sensor with bracket.
All vehicles
Taurus vehicles only
All vehicles
