Instrument Cluster

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

The instrument cluster consists of the following components:

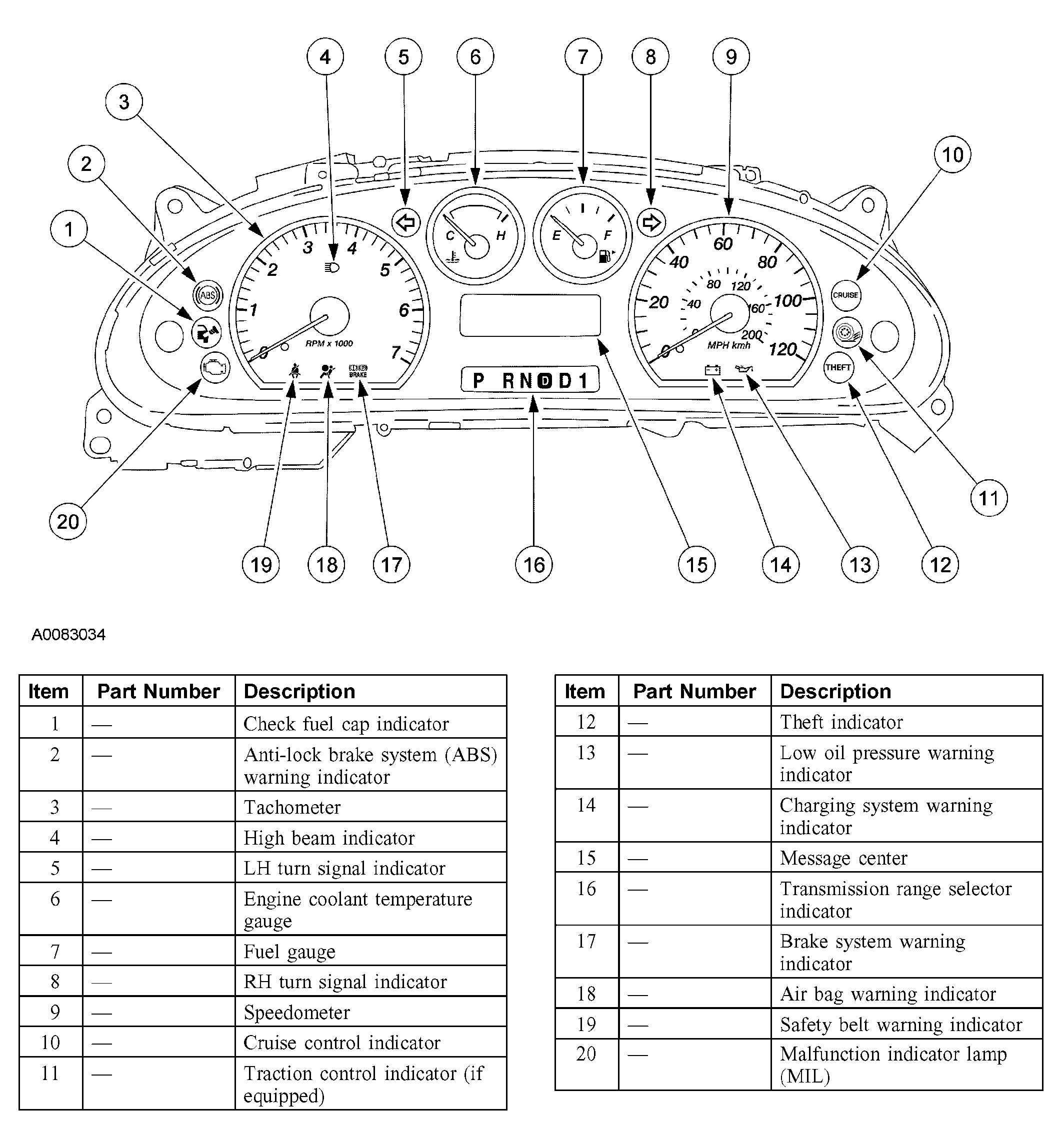

Fig 1: Identifying Instrument Cluster Components
G03958198Courtesy of FORD MOTOR CO.
