Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

The rear disc brake system is comprised of the components shown in the following illustrations.

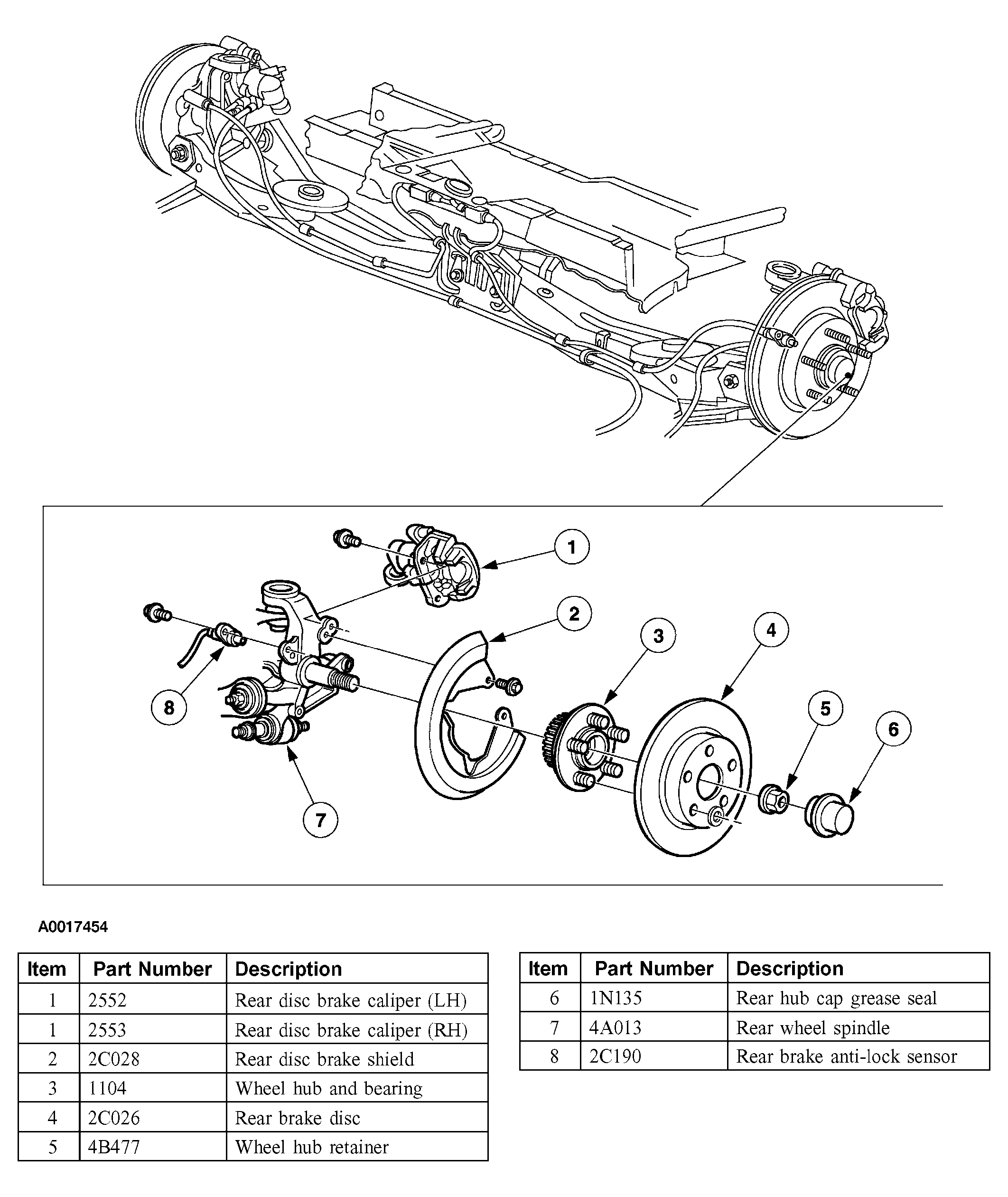

Rear Disc Brake System Components

Fig 1: Identifying Rear Disc Brake System Components

Courtesy of FORD MOTOR CO.

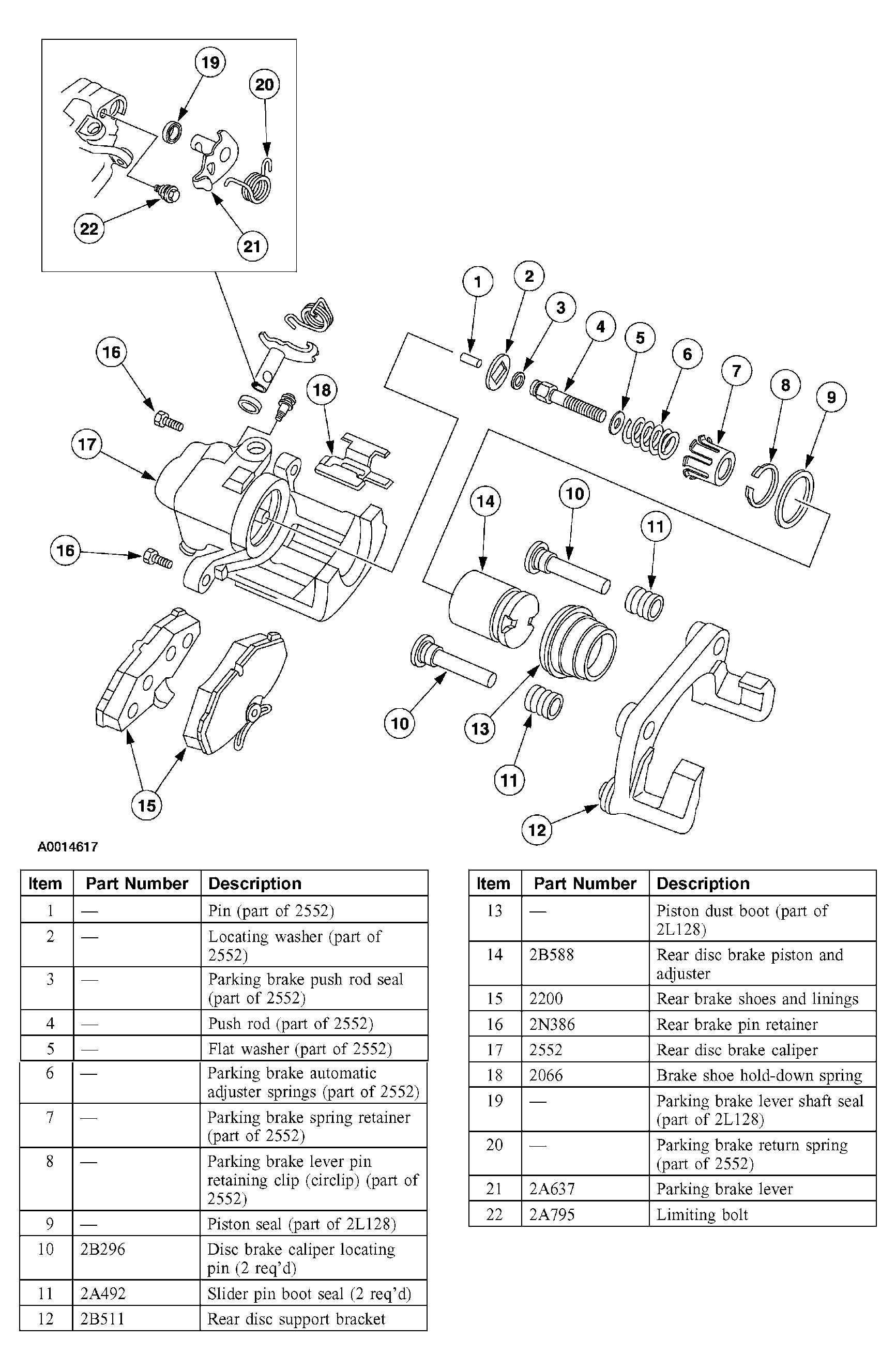

Rear Disc Brake Caliper-Disassembled View

Fig 2: Identifying Disc Brake Caliper Components

Courtesy of FORD MOTOR CO.
