Front Brake Pads: Installation

WARNING: This page is about a different car, the 2005 Mercury Sable and 2005 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Metal or sharp objects cannot come into direct contact with the piston surface or damage can result.

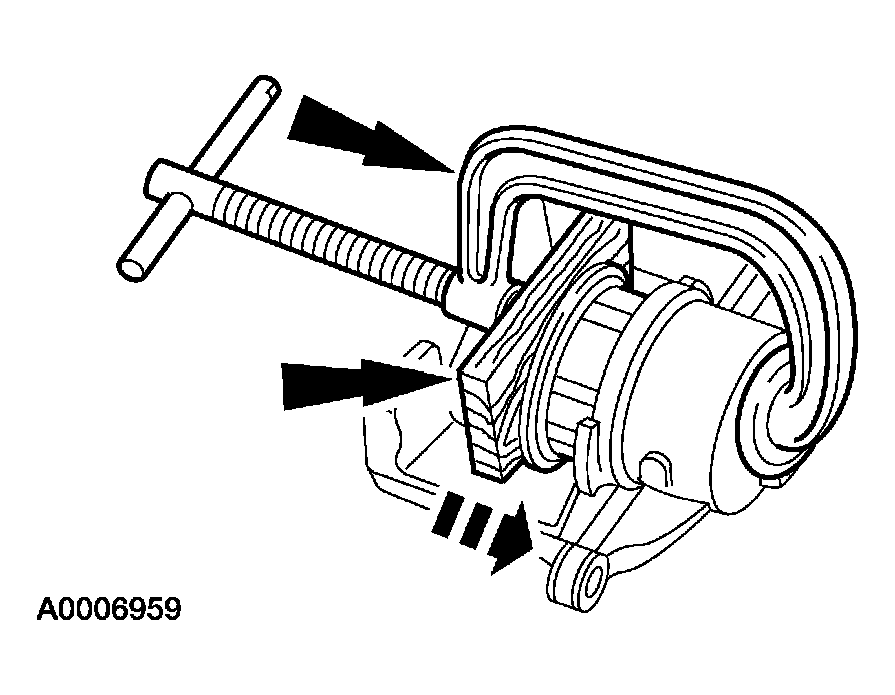

Fig 1: Pressing Caliper Piston Into Its Bore

Courtesy of FORD MOTOR CO.

Using a block of wood or an old brake pad and a 10 cm (4 inch) C-clamp, press the caliper piston into its bore.
Install the brake pads.

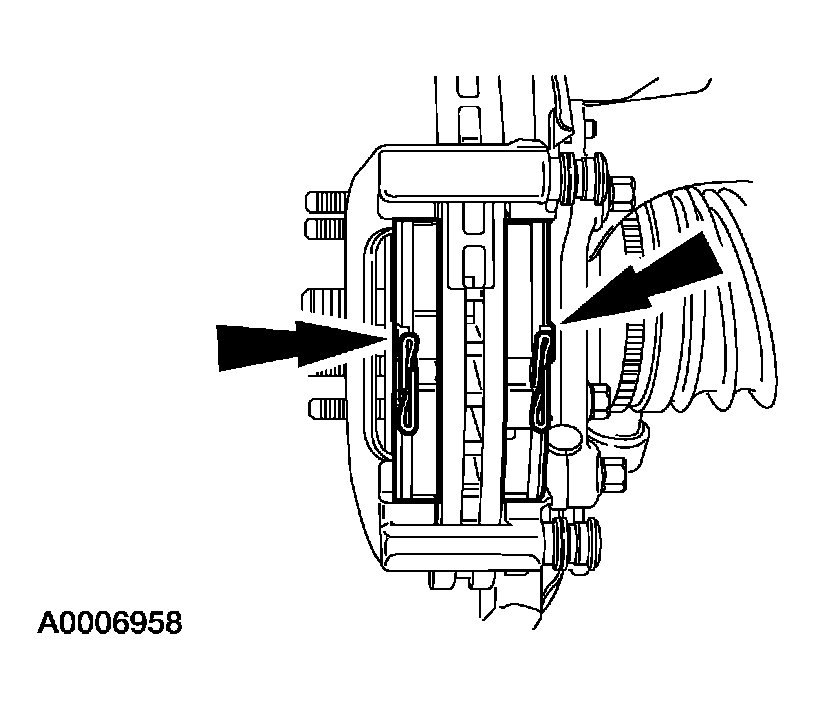

Fig 2: Identifying Brake Pads
Courtesy of FORD MOTOR CO.
Install the brake caliper and the bolts.

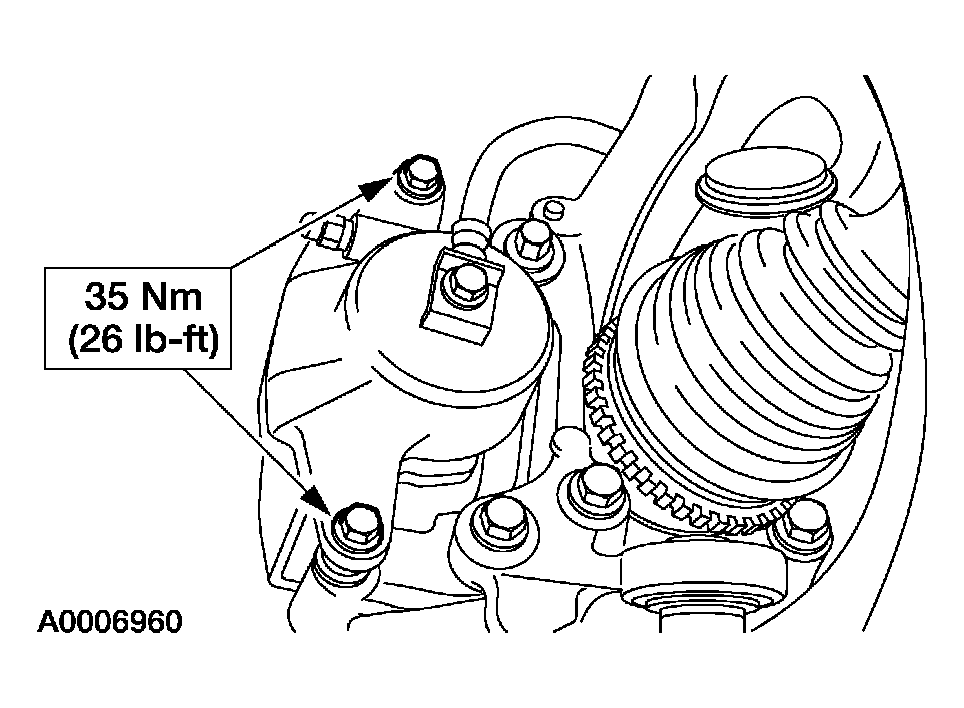

Fig 3: Installing Brake Caliper - With Torque Specification
Courtesy of FORD MOTOR CO.
Install the wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
Pump the brake pedal several times to position the brake linings.
Fill the Brake fluid reservoir with Ford High Performance DOT 3 Motor Vehicle Brake Fluid C6AZ-19542-AB or DOT 3 equivalent meeting Ford specification ESA-M6C25-A.
