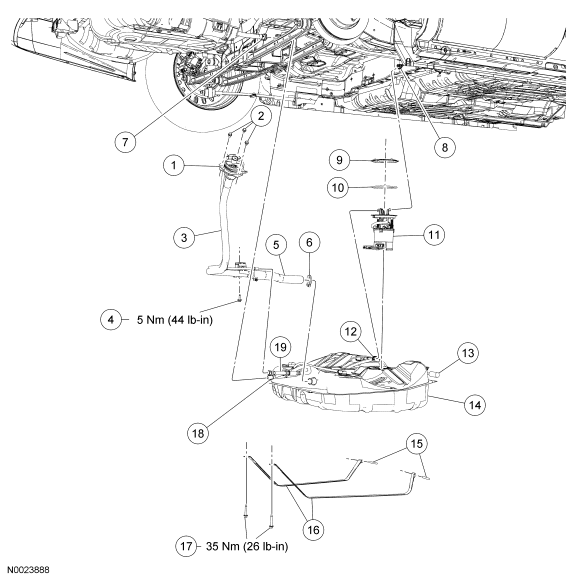

| 1 |
9030A |
Fuel tank filler pipe cap |
| 2 |
N805402S |
Fuel tank filler neck screws (3 required) |
| 3 |
9034E |
Fuel tank filler pipe |
| 4 |
N806111 |
Fuel tank filler pipe bracket bolt |
| 5 |
- |
Fuel tank filler pipe hose (part of 9034E) |
| 6 |
W525937 |
Fuel tank filler pipe hose clamp (part of 9034E) |
| 7 |
9C047 |
Evaporative emission (EVAP) vapor tube quick connect coupling |
| 8 |
9S278A |
Fuel supply tube quick connect coupling |
| 9 |
9C385A |
Fuel pump (FP) module lock ring |
| 10 |
9E275A |
FP module O-ring |
| 11 |
9H307A |
FP module |
| 12 |
- |
FP module electrical connector (part of 14A464) |
| 13 |
14A464 |
FP model electrical harness |
| 14 |
9002A |
Fuel tank |
| 15 |
N802429 |
Fuel tank strap retaining pins |
| 16 |
9055A |
Fuel tank straps |
| 17 |
N804568 |
Fuel tank strap bolts |
| 18 |
9C047A |
Fuel vapor control tube assembly quick connect coupling (part of 9C047C) |
| 19 |
9C047C |
Fuel vapor control tube assembly quick connect coupling (part of 9C047C) |
