Wiper High/Low Relay Connector
Wiper High/Low Relay Connector

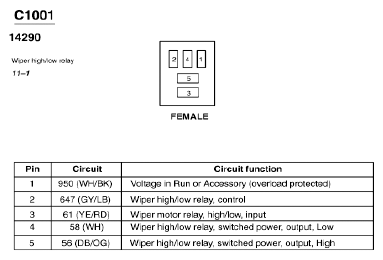

Fig 1: Wiper High/Low Relay Connector End View (C1001)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
