Seat Adjust Switch, Passenger Side Front Connector

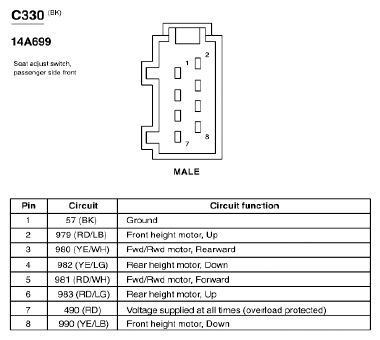

Fig 1: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07850210

Courtesy of FORD MOTOR CO.
