Safety Belt Tension Sensor Connector

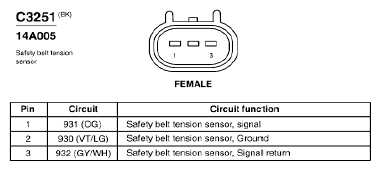

Fig 1: Safety Belt Tension Sensor Connector End View (C3251)

G07850338

Courtesy of FORD MOTOR CO.
