Safety Belt Assembly, Left Connector

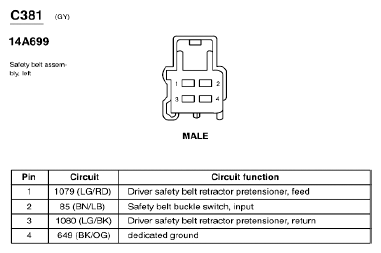

Fig 1: Safety Belt Assembly, Left Connector End View (C381)

G07850220

Courtesy of FORD MOTOR CO.
