Power Window Motor, Right Rear Connector

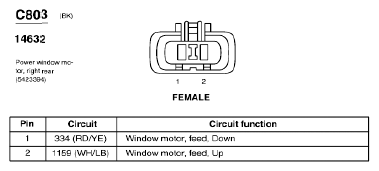

Fig 1: Power Window Motor, Right Rear Connector End View (C803)

G07850275

Courtesy of FORD MOTOR CO.
