Power Seat Motor Assembly, Right Connector

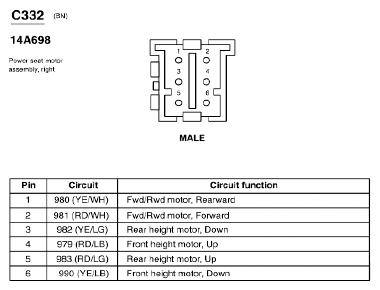

Fig 1: Power Seat Motor Assembly, Right Connector End View (C332)

G07850211

Courtesy of FORD MOTOR CO.
