Park/Turn Lamp, Left Front Connector

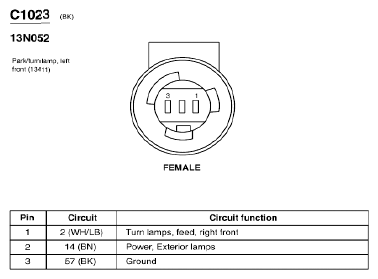

Fig 1: Park/Turn Lamp, Left Front Connector End View (C1023)

G07850296

Courtesy of FORD MOTOR CO.
