Headlamp, Right Connector
Headlamp, Right Connector

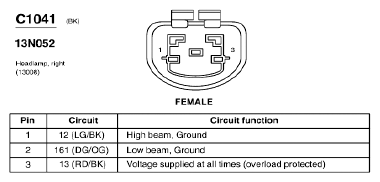

Fig 1: Headlamp, Right Connector End View (C1041)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
