Engine Cooling Fan Motor 1 Connector

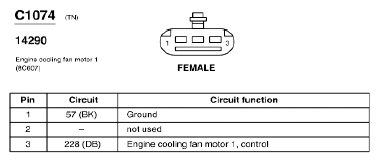

Fig 1: Engine Cooling Fan Motor 1 Connector End View (C1074)

G07850314

Courtesy of FORD MOTOR CO.
