Door Lock Switch Passenger Side Connector

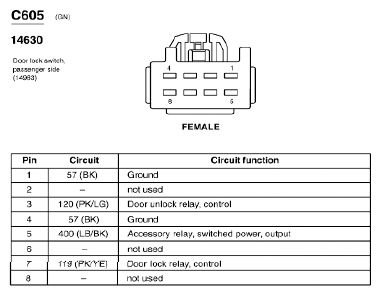

Fig 1: Door Lock Switch Passenger Side Connector End View (C605)

G07850265

Courtesy of FORD MOTOR CO.
