Instrument Panel Center Finish Panel: Notes

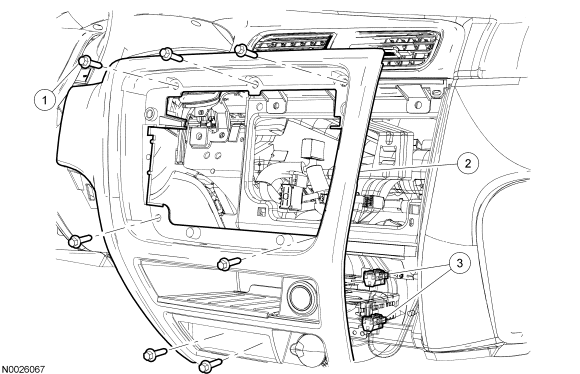

Fig 1: Exploded View Of Instrument Panel Center Finish Panel
GF0019311Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314-S424 Instrument panel center finish panel screws (7 required)
2 - Instrument panel center finish panel electrical connectors (2 required) (part of 14489)
3 04302 Instrument panel center finish panel
