Console - Floor: Notes

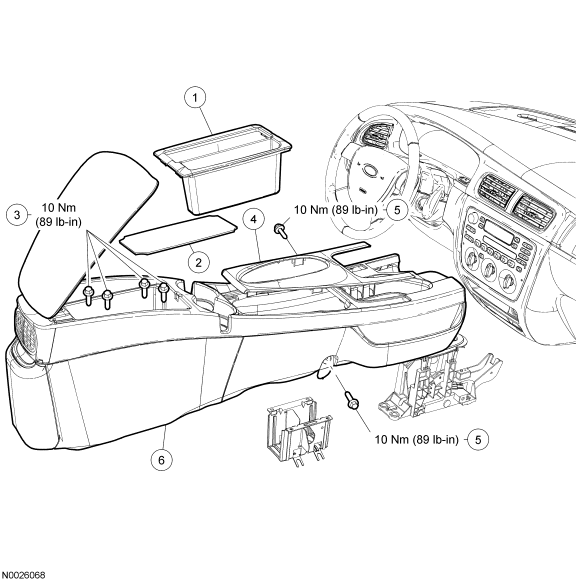

Fig 1: Exploded View Of Floor Console With Torque Specifications
GF0019313Courtesy of FORD MOTOR CO.
Item Part Number Description
1 047A44 Floor console storage bin
2 045634 Floor console storage bin mat
3 N606676-S36 Floor console bolts (4 required)
4 044D90 Shift lever bezel (if equipped)
5 N606676-S36 Floor console finish panel bolts (2 required)
6 045A06 Floor console
