Seat Backrest - Front, Center: Notes

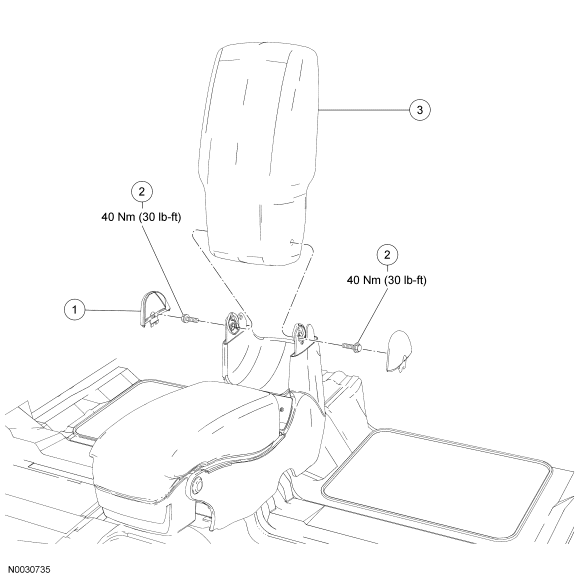

Fig 1: Front, Center Seat Backrest Replacement Components -- With Torque Specifications
GF0019241Courtesy of FORD MOTOR CO.
Item Part Number Description
1 654A83 Backrest pivot trim cover (2 required)
2 N811846 Backrest pivot bolts (2 required)
3 644A22 Center front seat backrest
