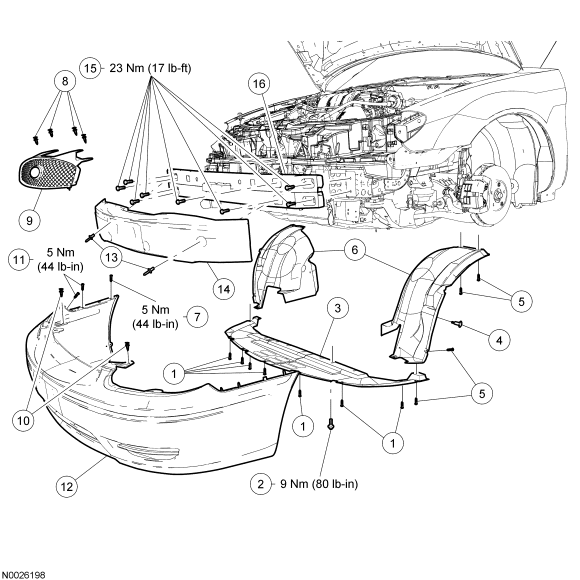

| 1 |
W707222 |
Air dam screws (7 required) |
| 2 |
N606676 |
Air dam bolts (3 required) |
| 3 |
8B407 |
Air dam |
| 4 |
388930 |
LH and RH front fender splash shields pin-type retainers (2 required) |
| 5 |
N802539 |
LH and RH front fender splash shields screws (8 required) |
| 6 |
16A573 |
LH and RH front fender splash shields |
| 7 |
N807151 |
Front bumper cover bolts (2 required) |
| 8 |
W705436 |
Radiator grille pin-type retainers (4 required) |
| 9 |
8200 |
Radiator grille |
| 10 |
W705436 |
Front bumper cover pin-type retainers (2 required) |
| 11 |
N807151 |
Front bumper cover bolts (4 required) |
| 12 |
17D957 |
Front bumper cover |
| 13 |
N807168 |
Front bumper isolator rivets (2 required) |
| 14 |
17E898 |
Front bumper isolator |
| 15 |
N811453 |
Front bumper bolts (8 required) |
| 16 |
17750 |
Front bumper |
