Passive Anti-Theft System (PATS) Transceiver: Notes

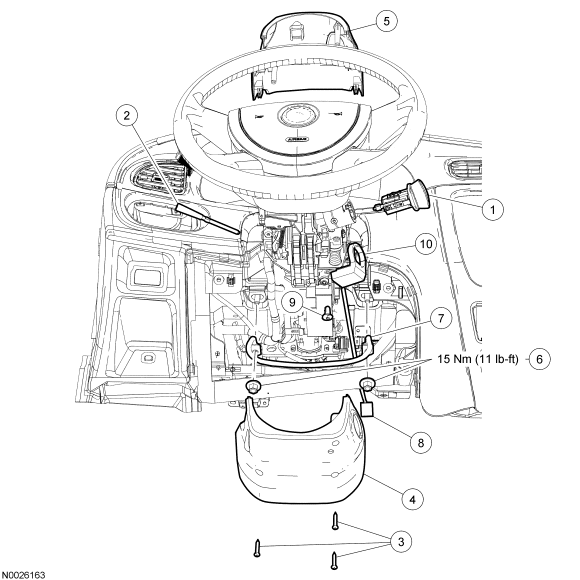

Fig 1: Exploded View Of Passive Anti-Theft System PATS Transceiver With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	11582	Ignition lock cylinder
2	3F609	Tilt wheel handle
3	55989	Lower steering column shroud screws (3 required)
4	35308	Lower steering column shroud
5	3530A	Upper steering column shroud
6	N806423	Steering column opening cover reinforcement nuts (2 required)
7	3E654	Steering column opening cover reinforcement
8	-	PATS transceiver electrical connector (part of 15607)
9	W707658	PATS transceiver screw
10	15607	PATS transceiver
