Restraints Control Module Connectors

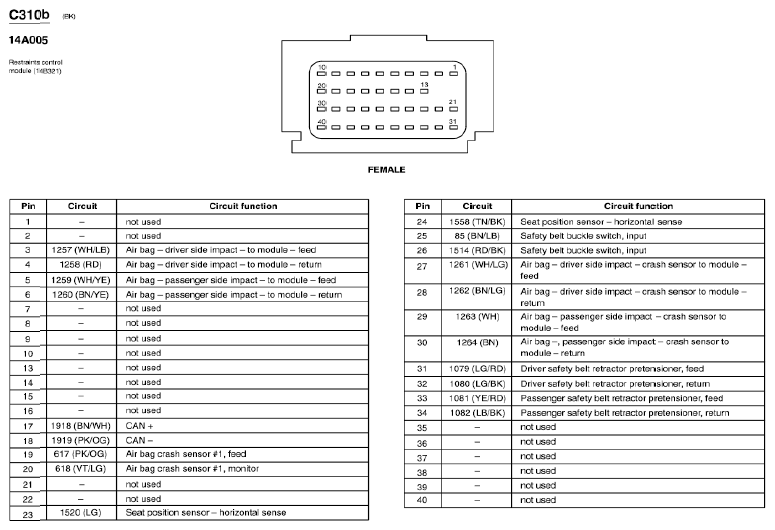

Fig 1: Restraints Control Module Connector End View (C310b)

G05169089

Courtesy of FORD MOTOR CO.
