Function Selector Switch Assembly Connector

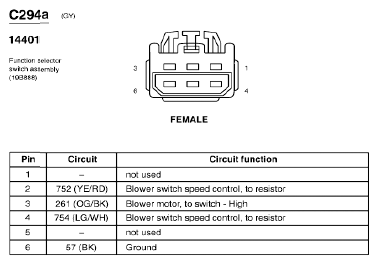

Fig 1: Function Selector Switch Assembly Connector End View (C294a)
G07850197Courtesy of FORD MOTOR CO.

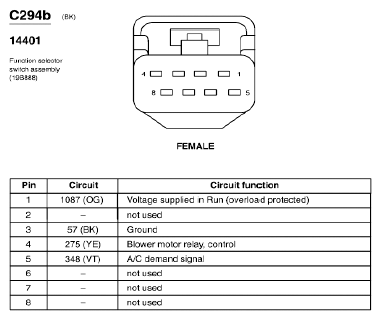

Fig 2: Function Selector Switch Assembly Connector End View (C294b)
G07850198Courtesy of FORD MOTOR CO.

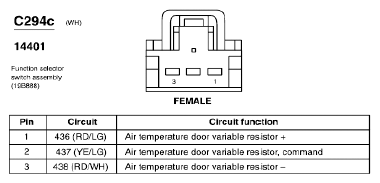

Fig 3: Function Selector Switch Assembly Connector End View (C294c)
G07850199Courtesy of FORD MOTOR CO.
