Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

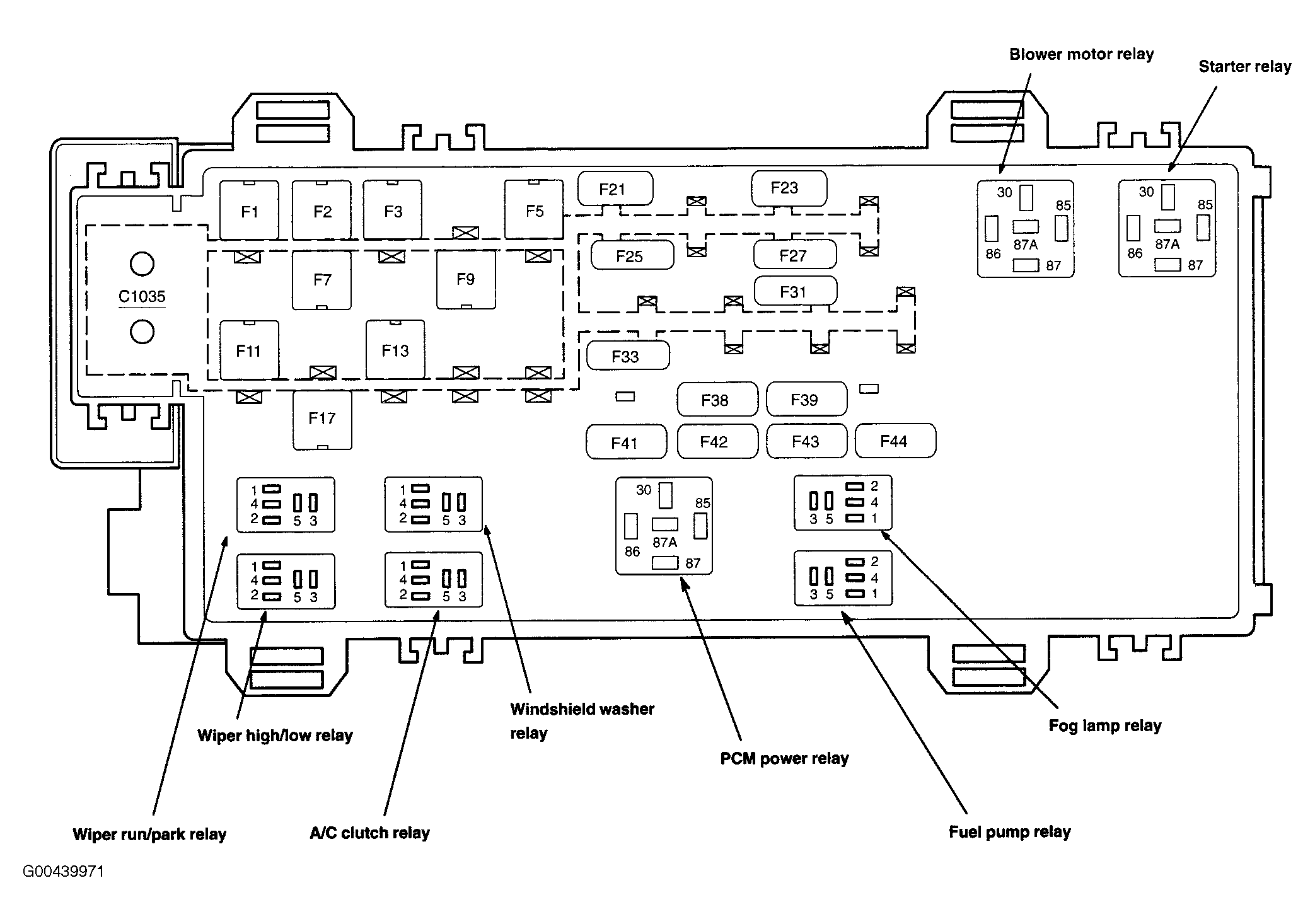

Fig 1: Battery Junction Box (BJB) (2.3L)
Courtesy of FORD MOTOR CO.

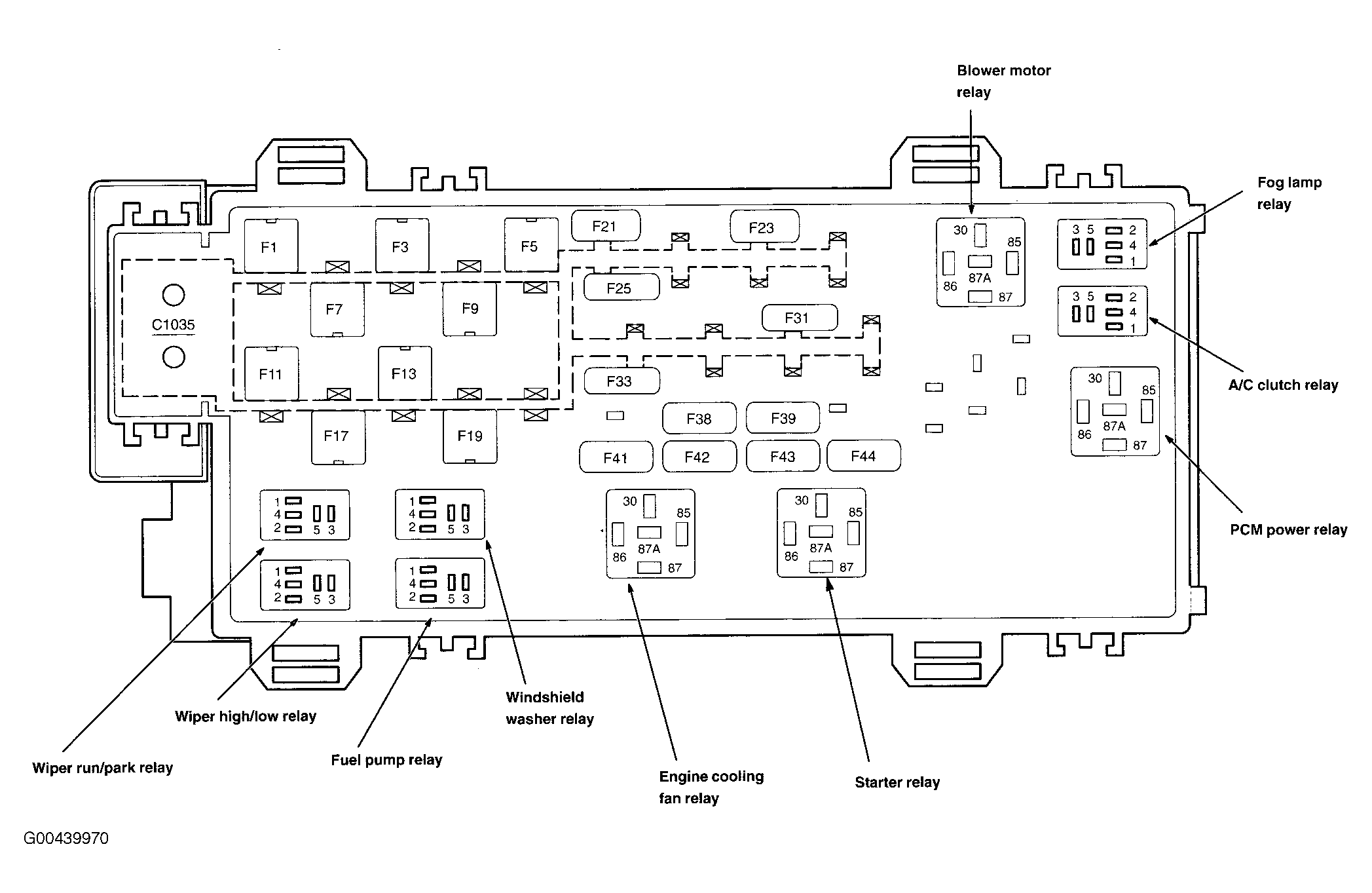

Fig 2: Battery Junction Box (BJB) (3.0L & 4.0L)
Courtesy of FORD MOTOR CO.

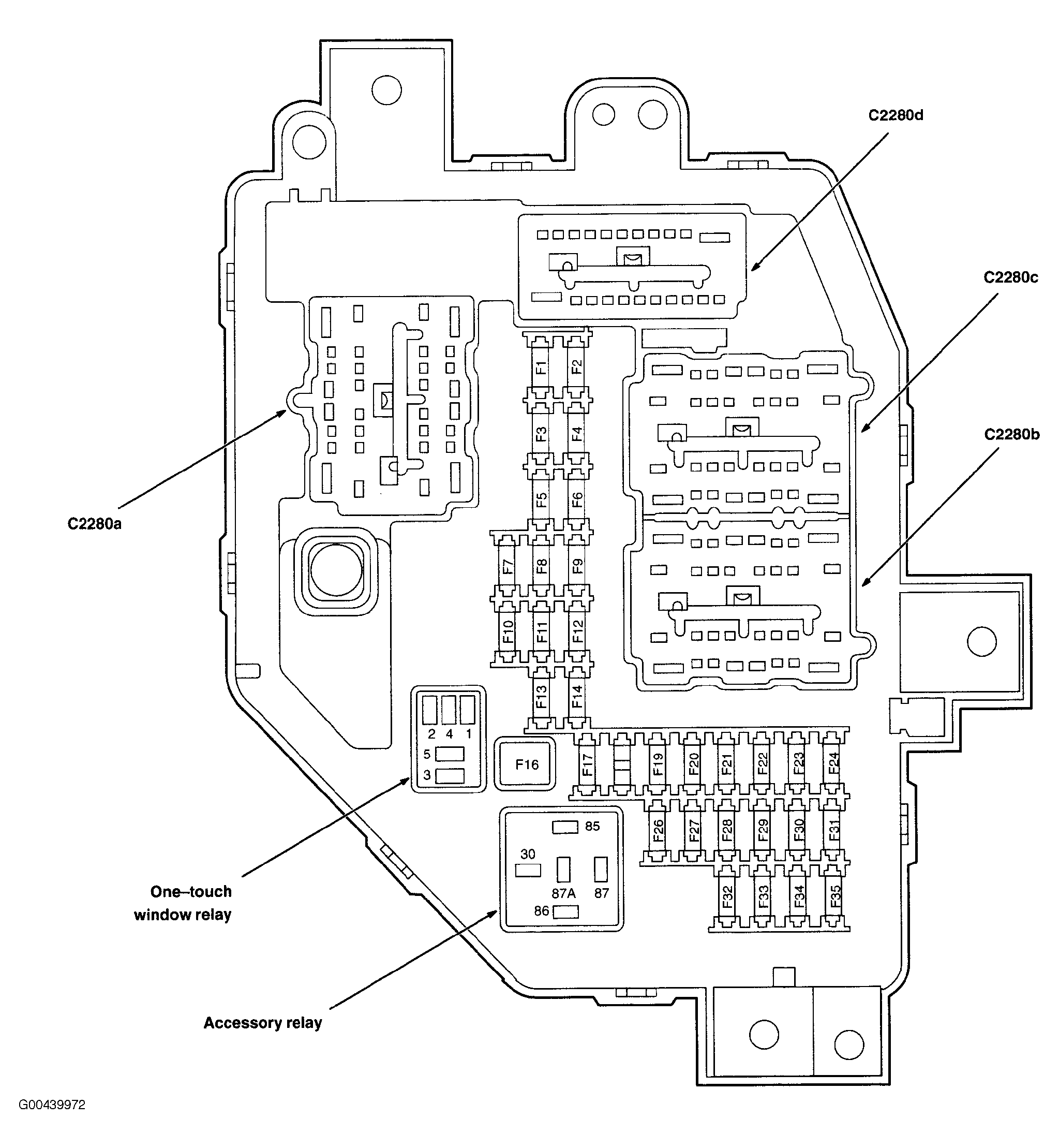

Fig 3: Smart Junction Box (SJB)
Courtesy of FORD MOTOR CO.

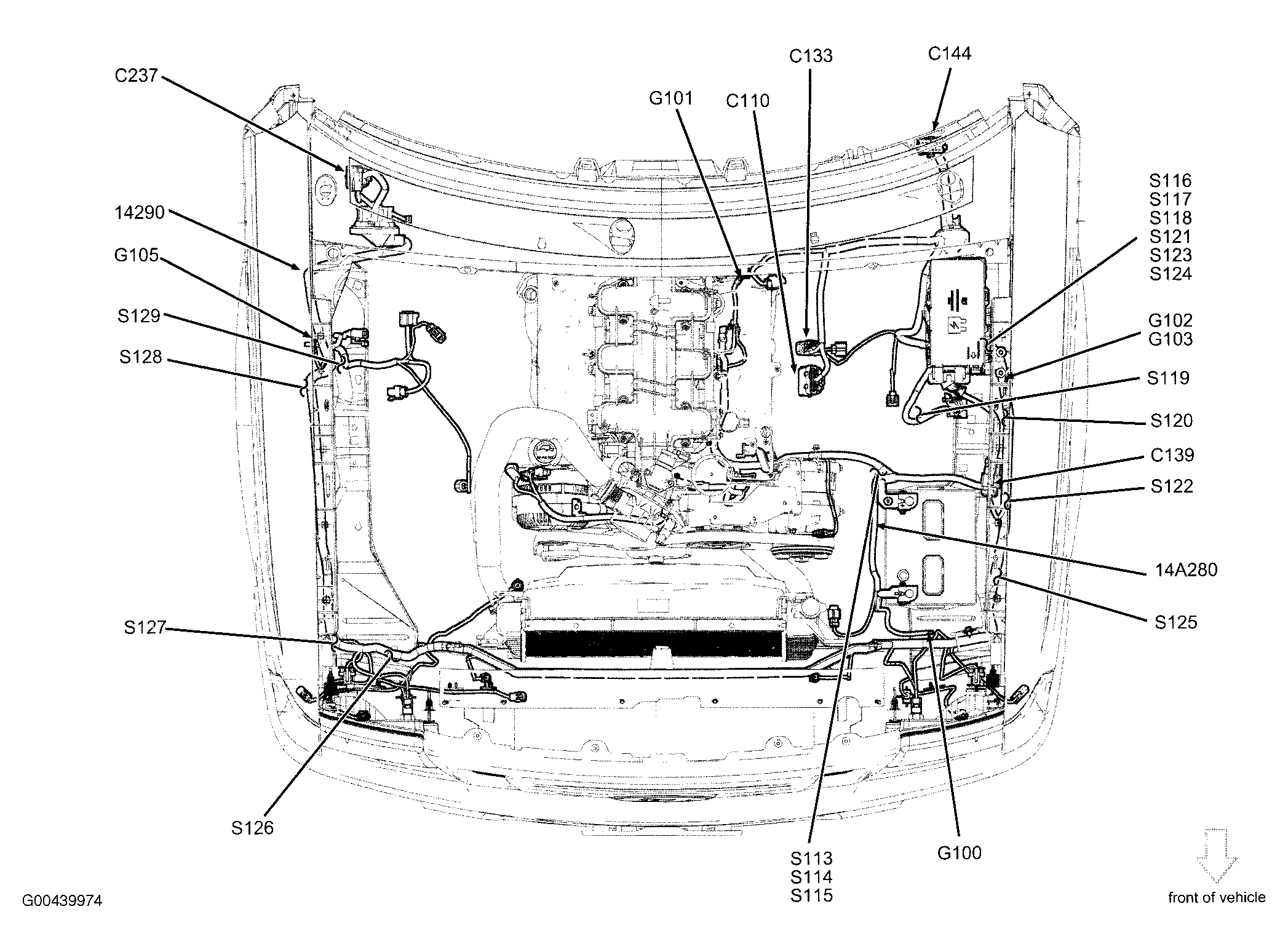

Fig 4: Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 5: Engine Compartment
Courtesy of FORD MOTOR CO.

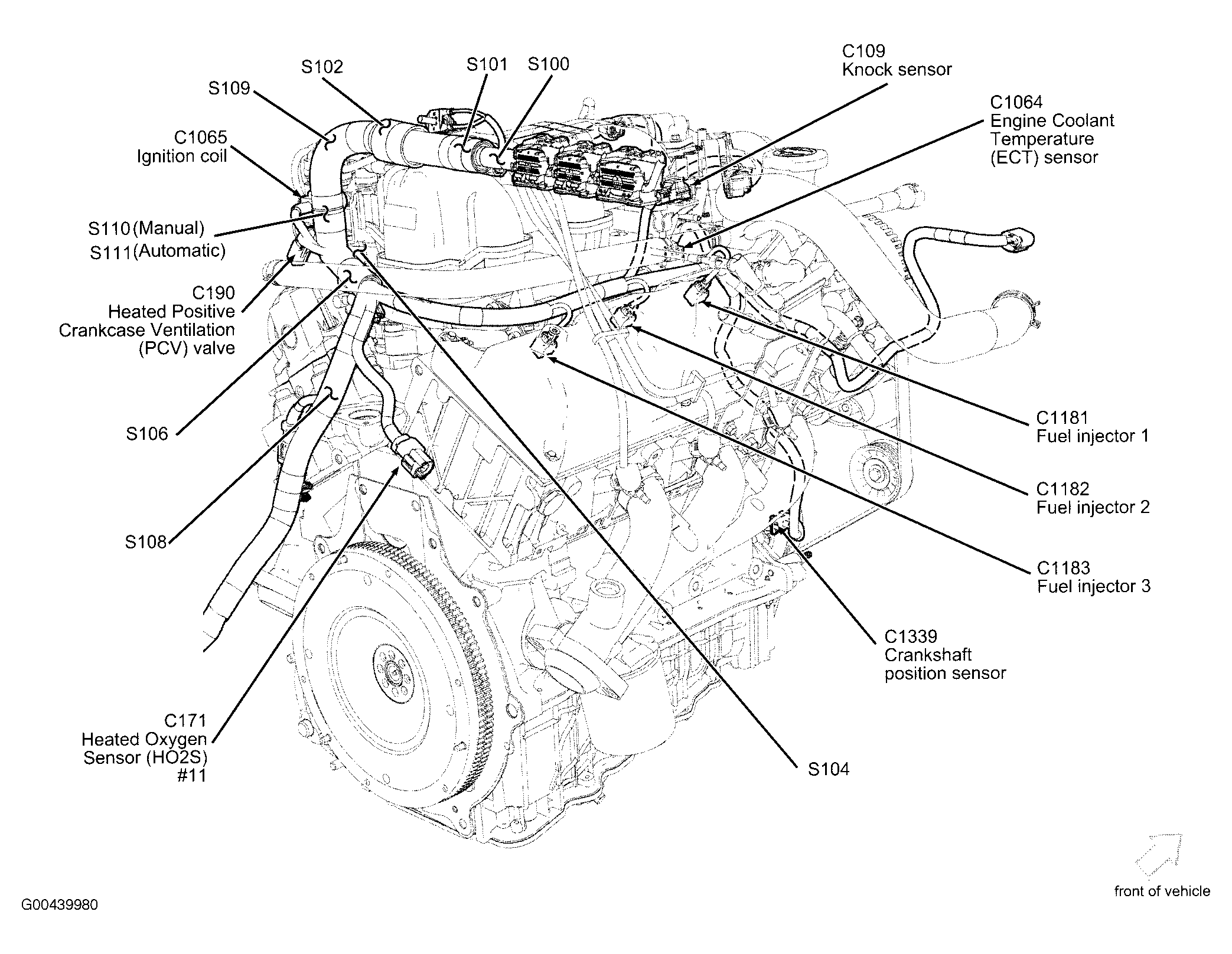

Fig 6: Left Front Of Engine (2.3L)
Courtesy of FORD MOTOR CO.

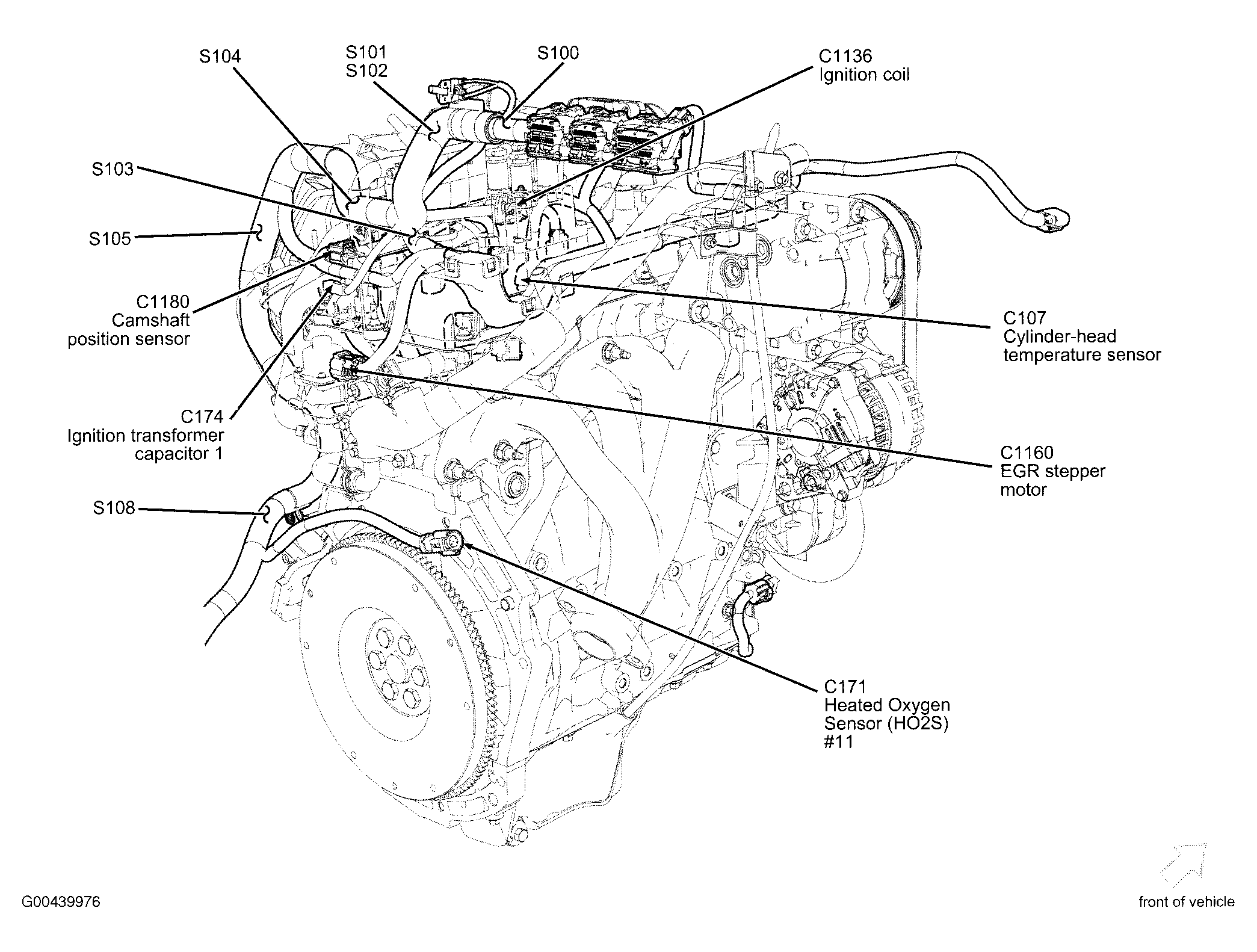

Fig 7: Right Rear Of Engine (2.3L)
Courtesy of FORD MOTOR CO.

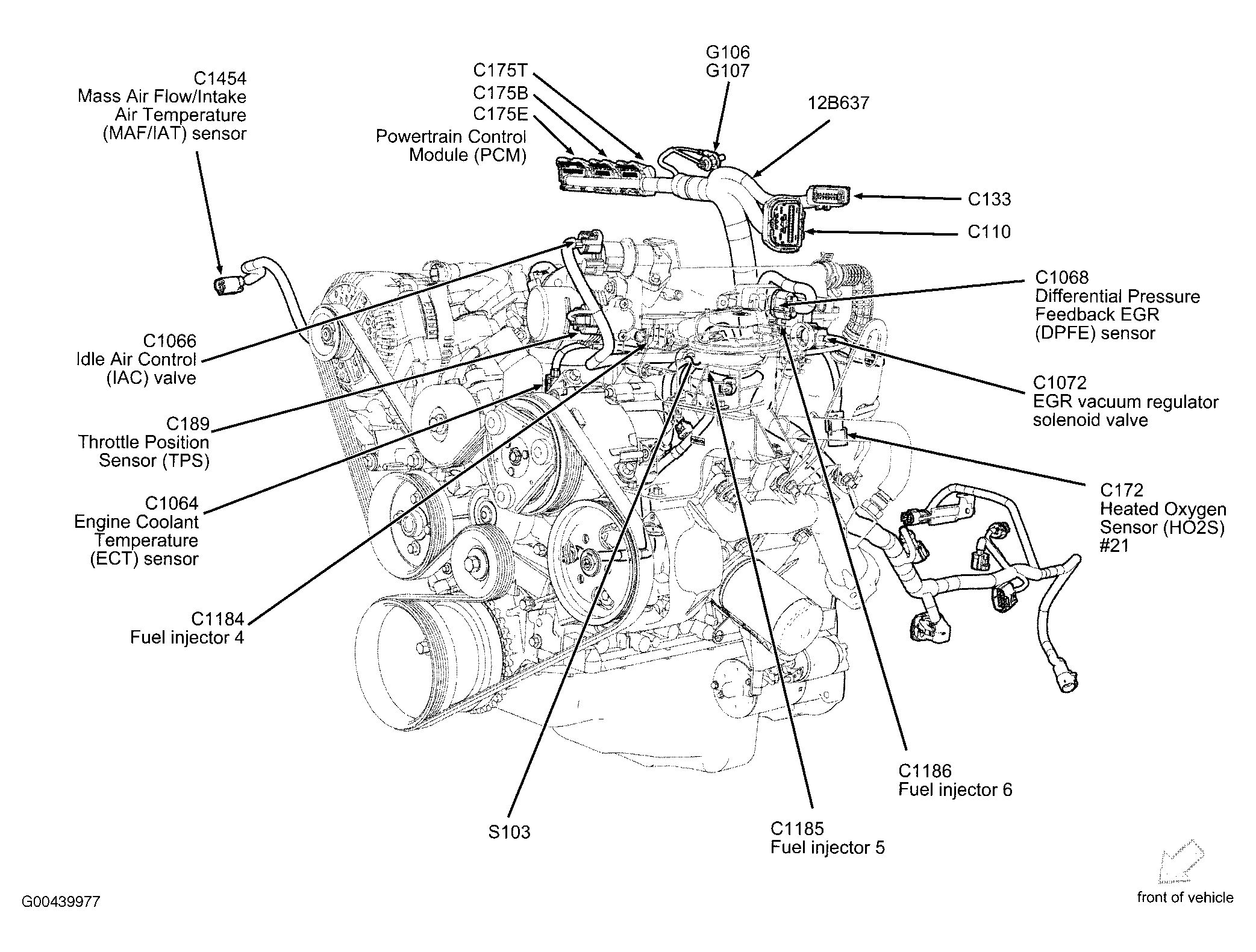

Fig 8: Left Front Of Engine (3.0L)
Courtesy of FORD MOTOR CO.
Fig 9: Right Rear Of Engine (3.0L)
Courtesy of FORD MOTOR CO.
Fig 10: Left Front Of Engine (4.0L)
Courtesy of FORD MOTOR CO.
Fig 11: Right Rear Of Engine (4.0L)
Courtesy of FORD MOTOR CO.

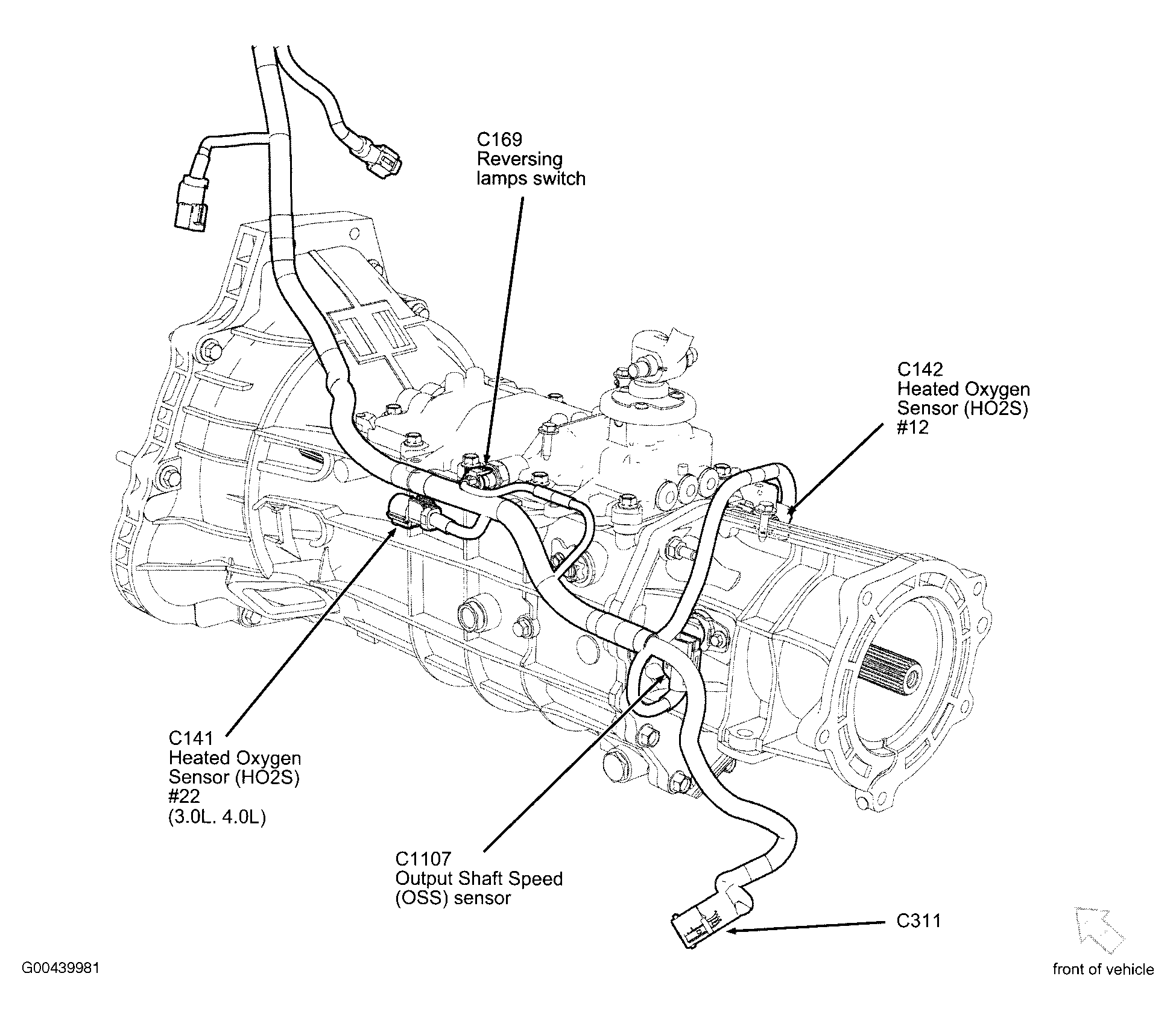

Fig 12: Manual Transmission
Courtesy of FORD MOTOR CO.

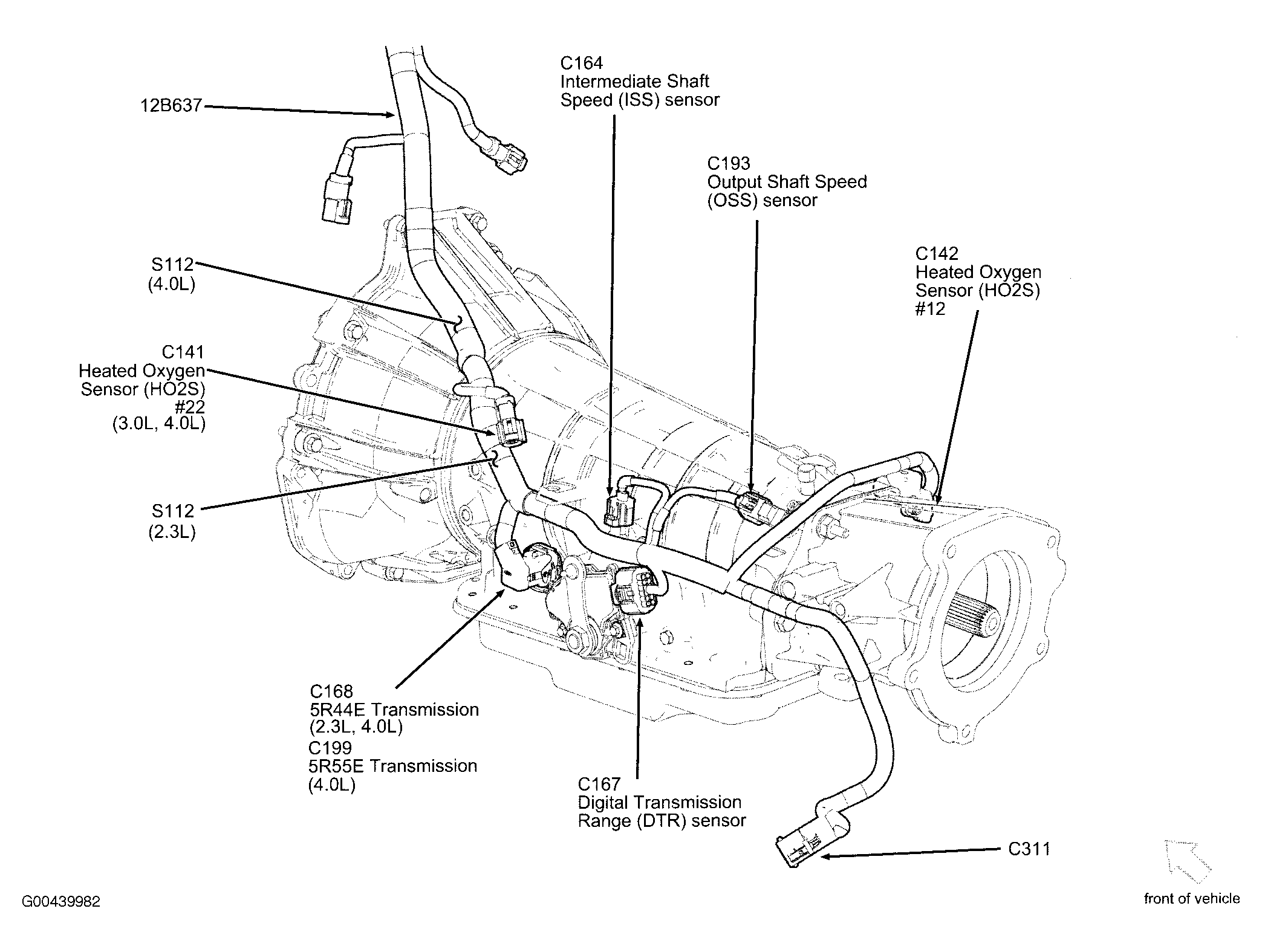

Fig 13: Automatic Transmission
Courtesy of FORD MOTOR CO.
Fig 14: Rear Of Dash
Courtesy of FORD MOTOR CO.
Fig 15: Front Of Dash
Courtesy of FORD MOTOR CO.

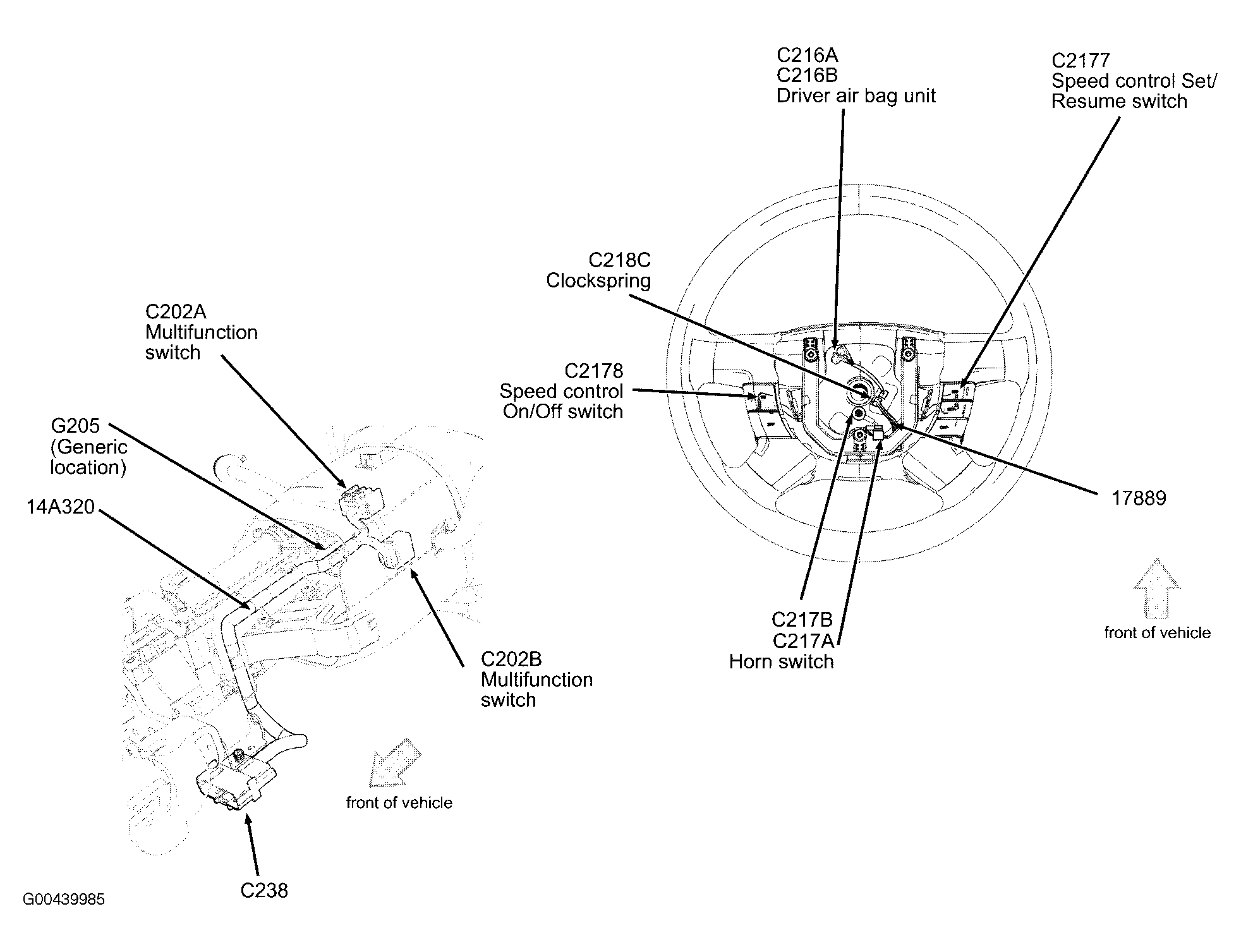

Fig 16: Steering Wheel & Column
Courtesy of FORD MOTOR CO.

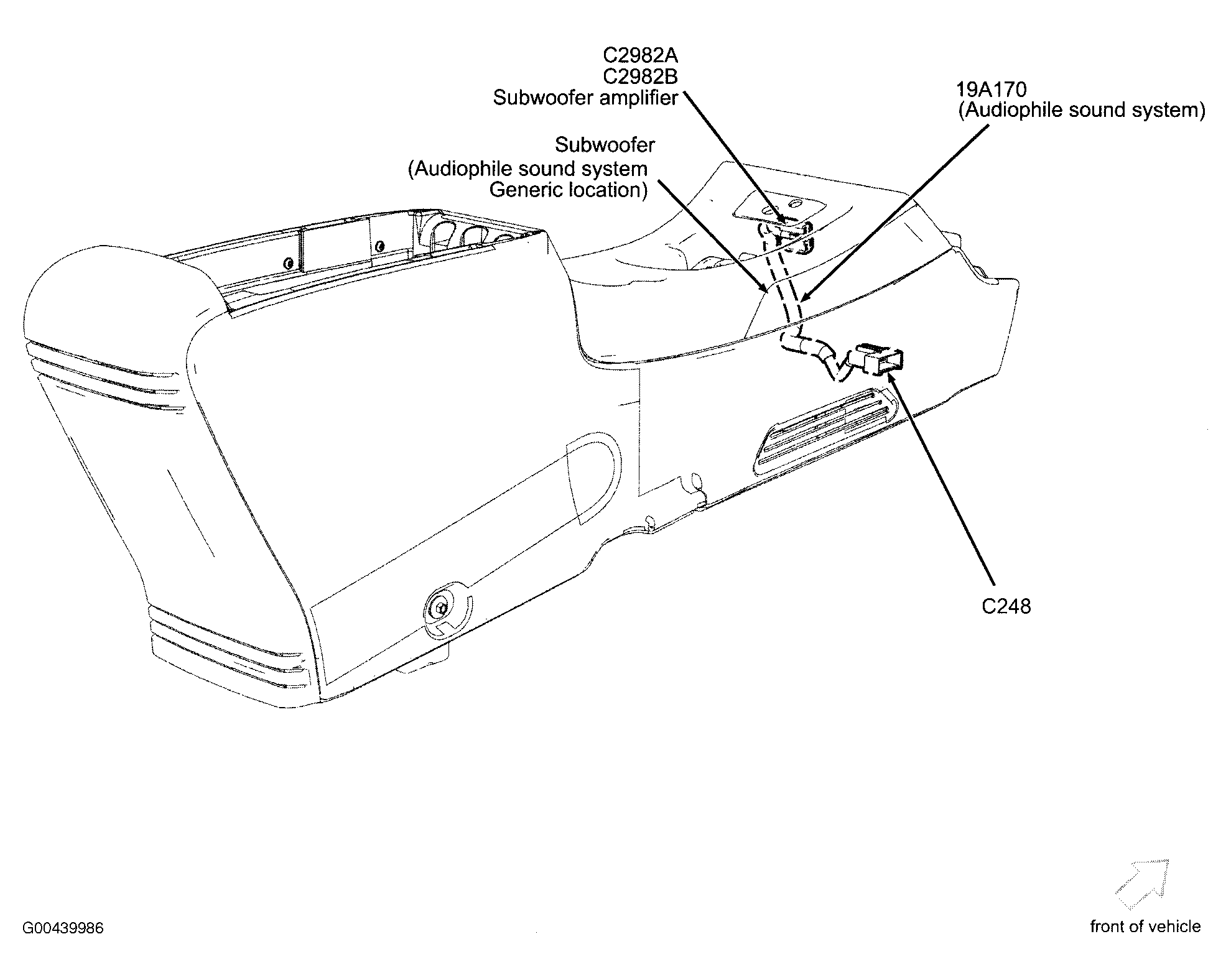

Fig 17: Center Console
Courtesy of FORD MOTOR CO.
Fig 18: Left Front Of Cab (Regular Cab)
Courtesy of FORD MOTOR CO.

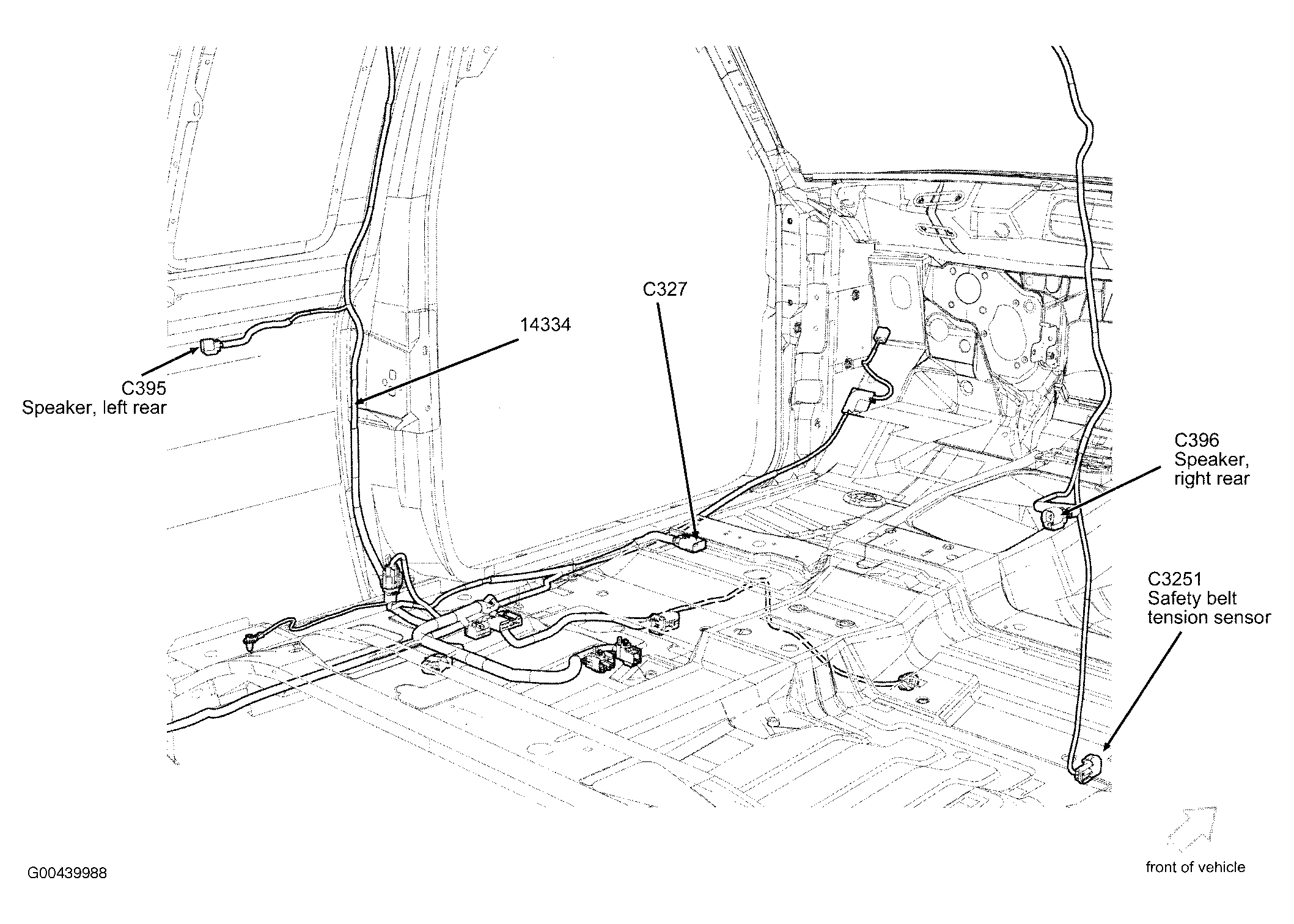

Fig 19: Left Front Of Cab (2-Door Super Cab)
Courtesy of FORD MOTOR CO.

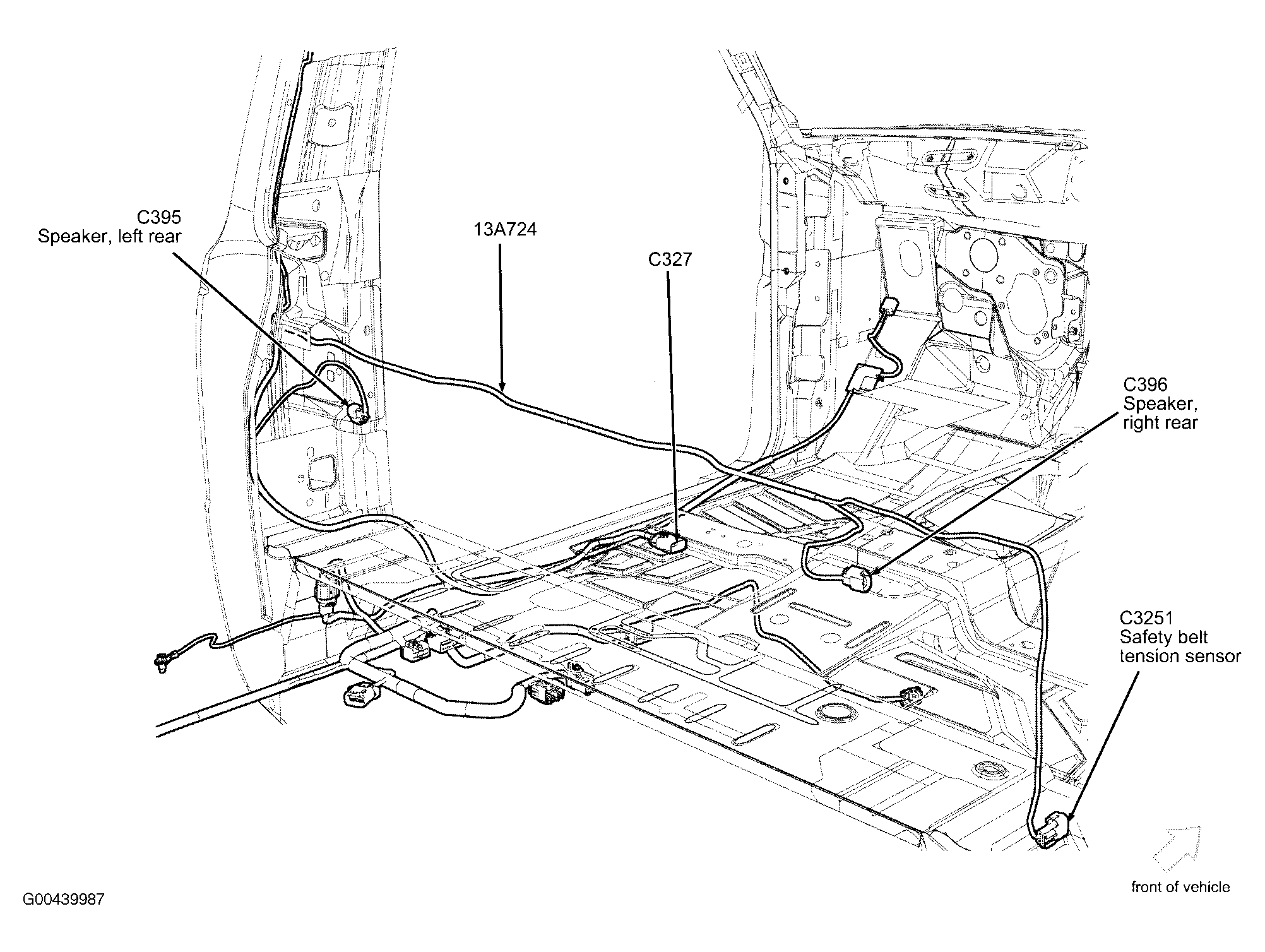

Fig 20: Left Front Of Cab (4-Door Super Cab)
Courtesy of FORD MOTOR CO.

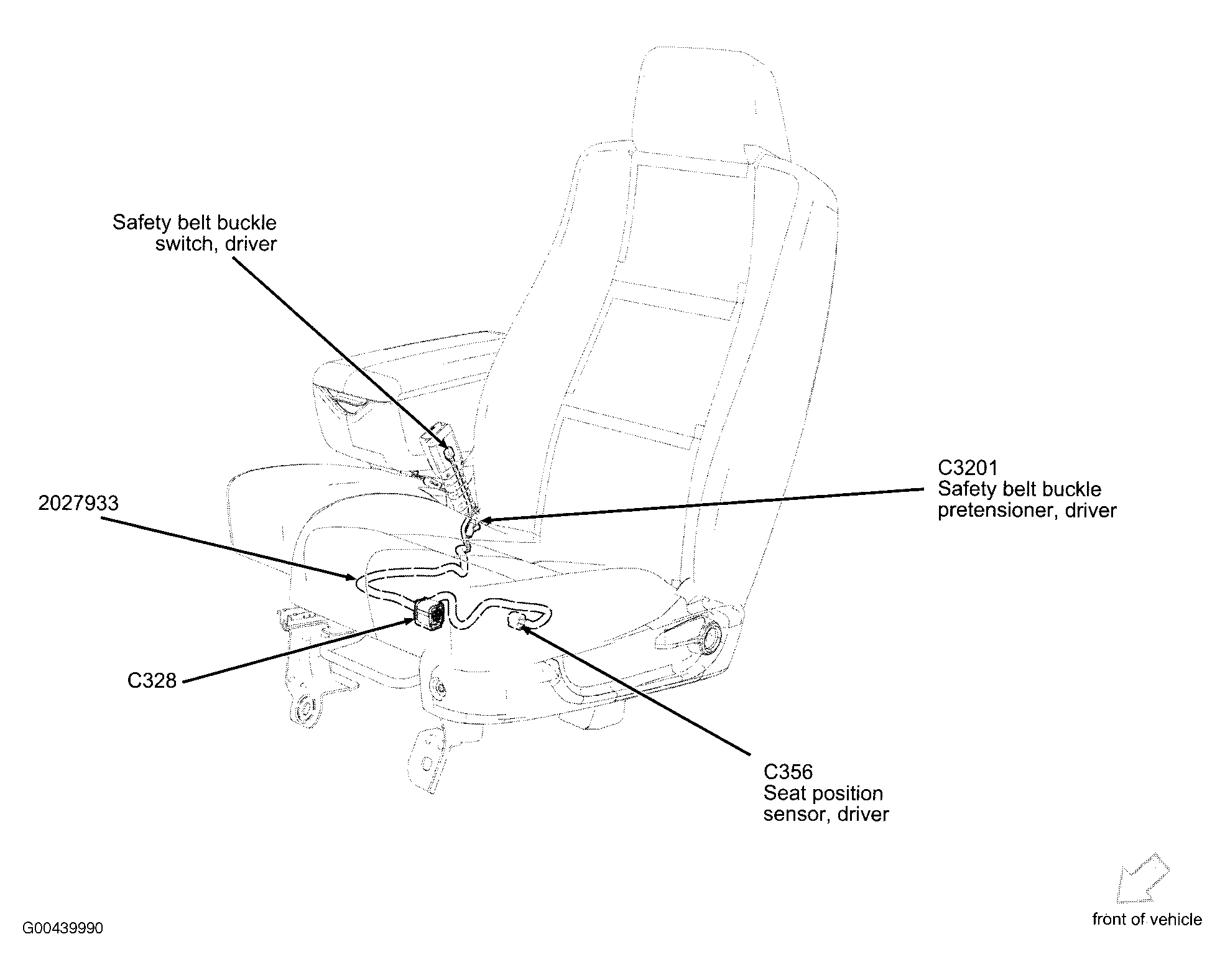

Fig 21: Driver's Seat
Courtesy of FORD MOTOR CO.
Fig 22: Passenger's Seat
Courtesy of FORD MOTOR CO.

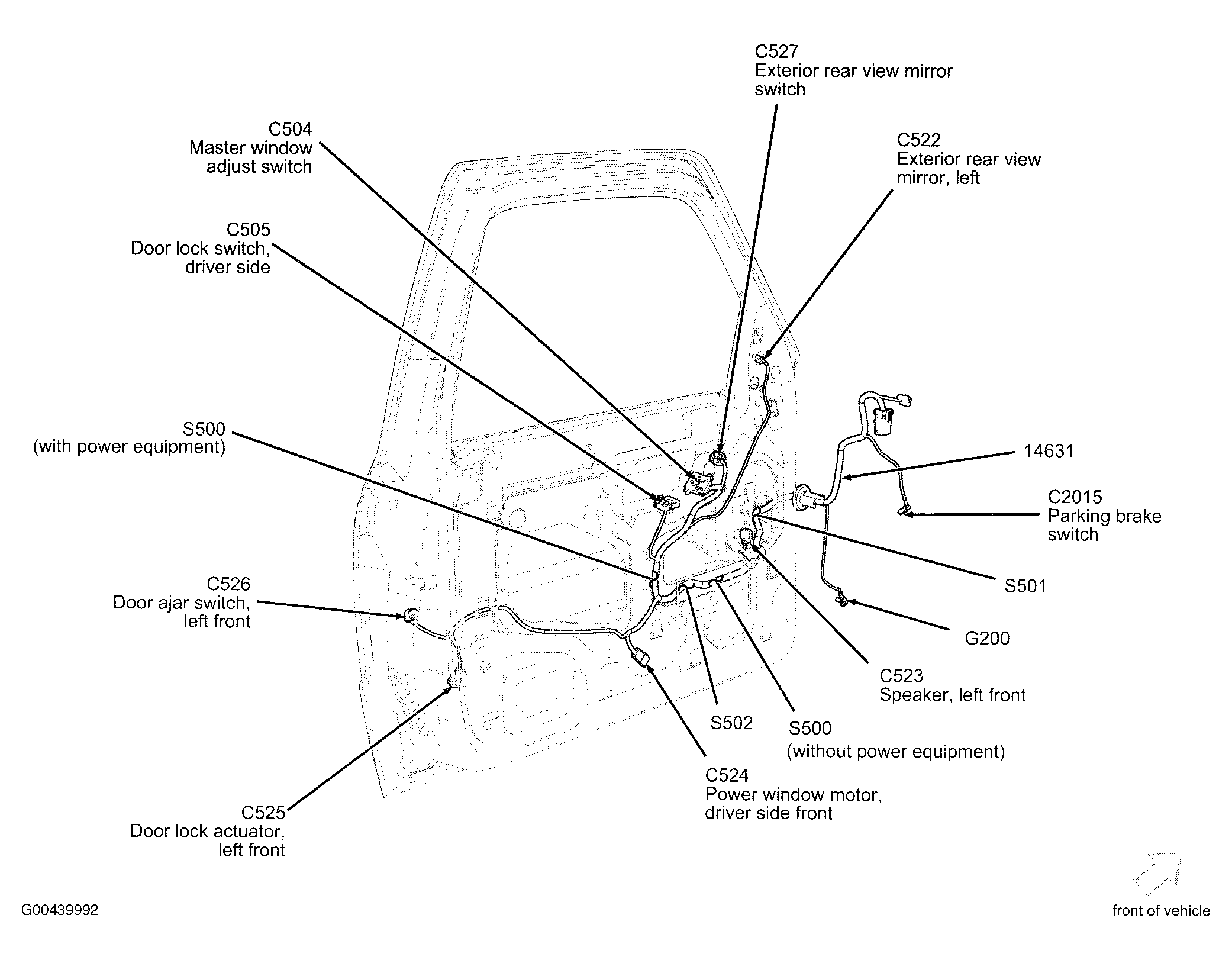

Fig 23: Driver's Door
Courtesy of FORD MOTOR CO.

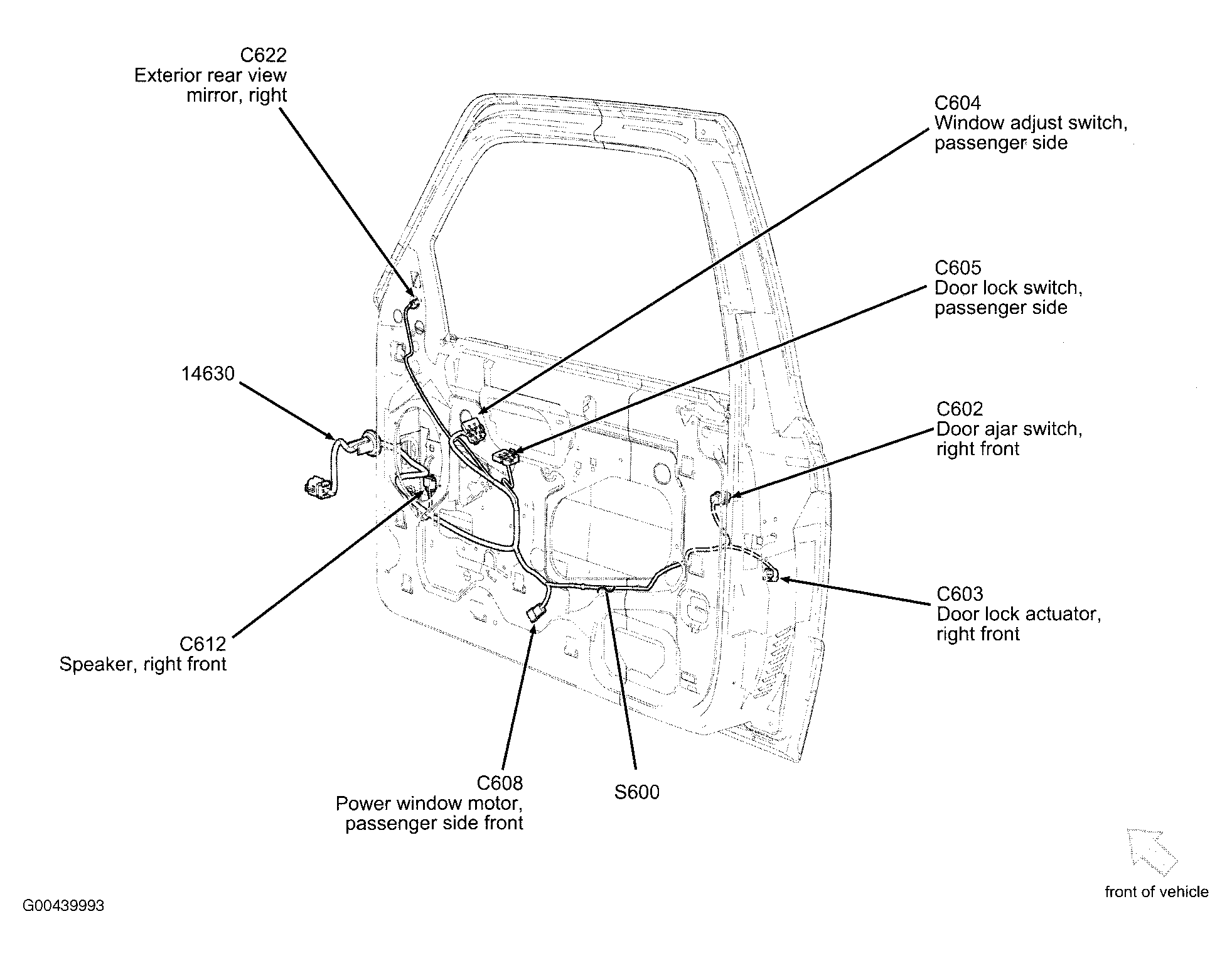

Fig 24: Passenger's Door
Courtesy of FORD MOTOR CO.

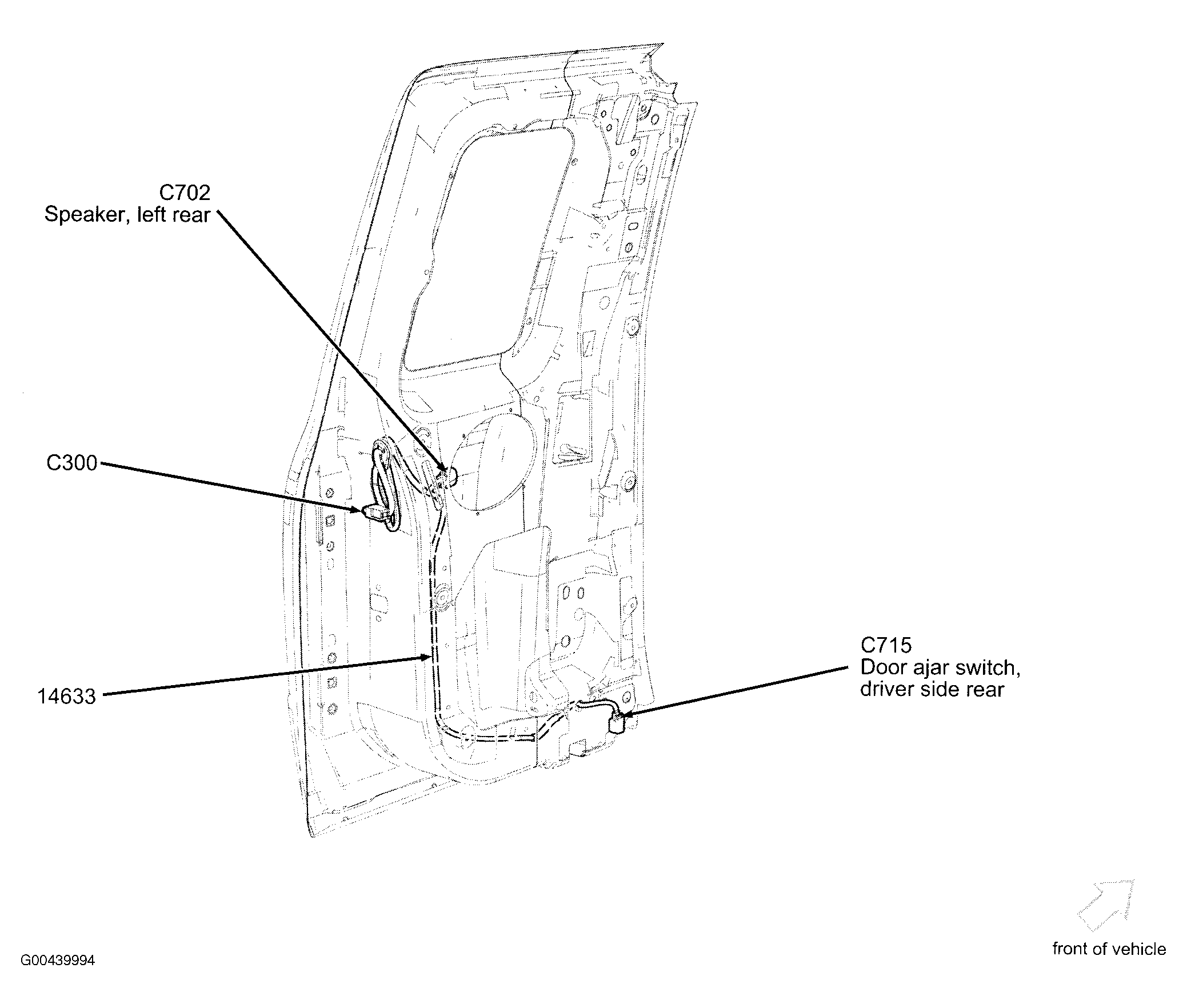

Fig 25: Left Rear Door
Courtesy of FORD MOTOR CO.

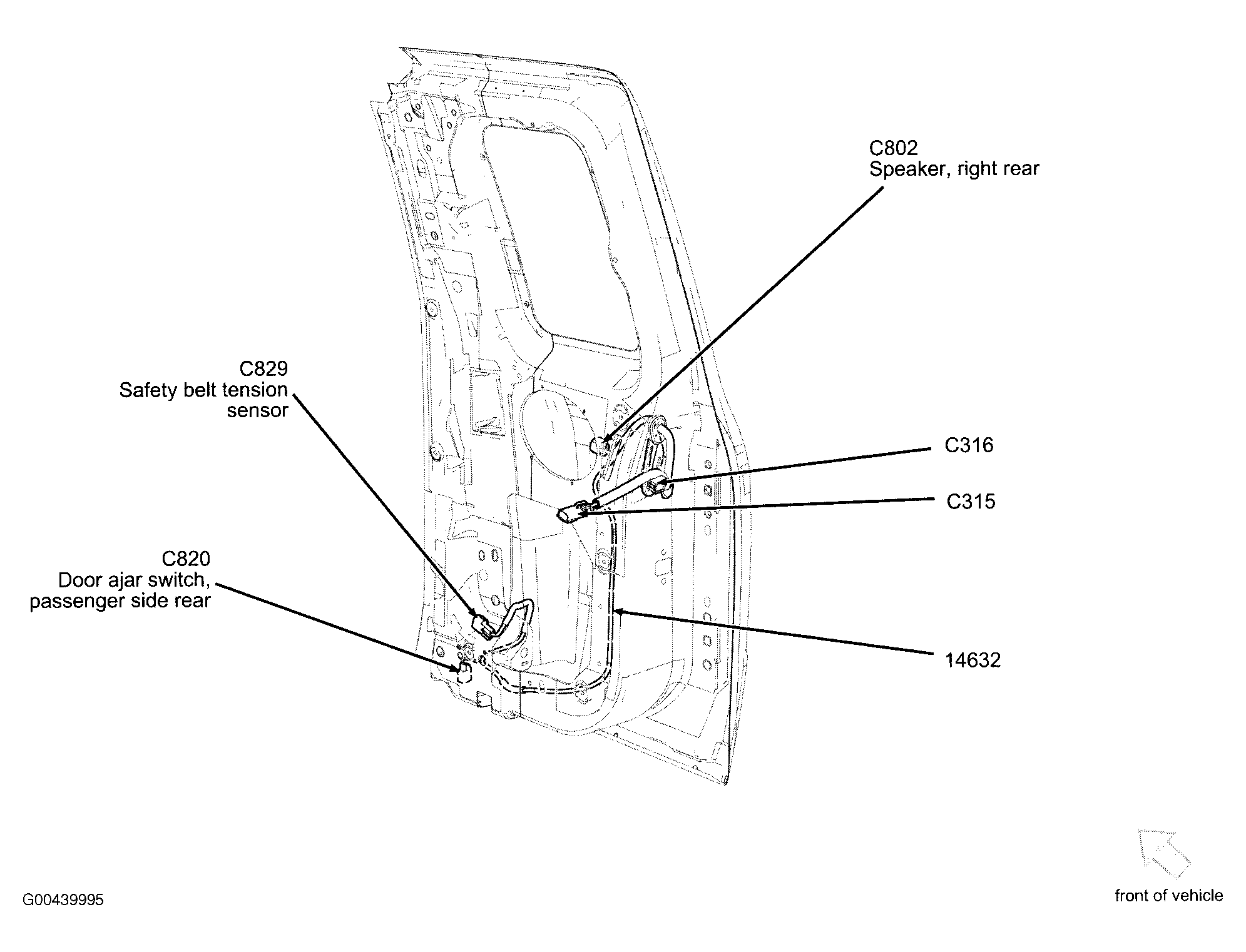

Fig 26: Right Rear Door
Courtesy of FORD MOTOR CO.

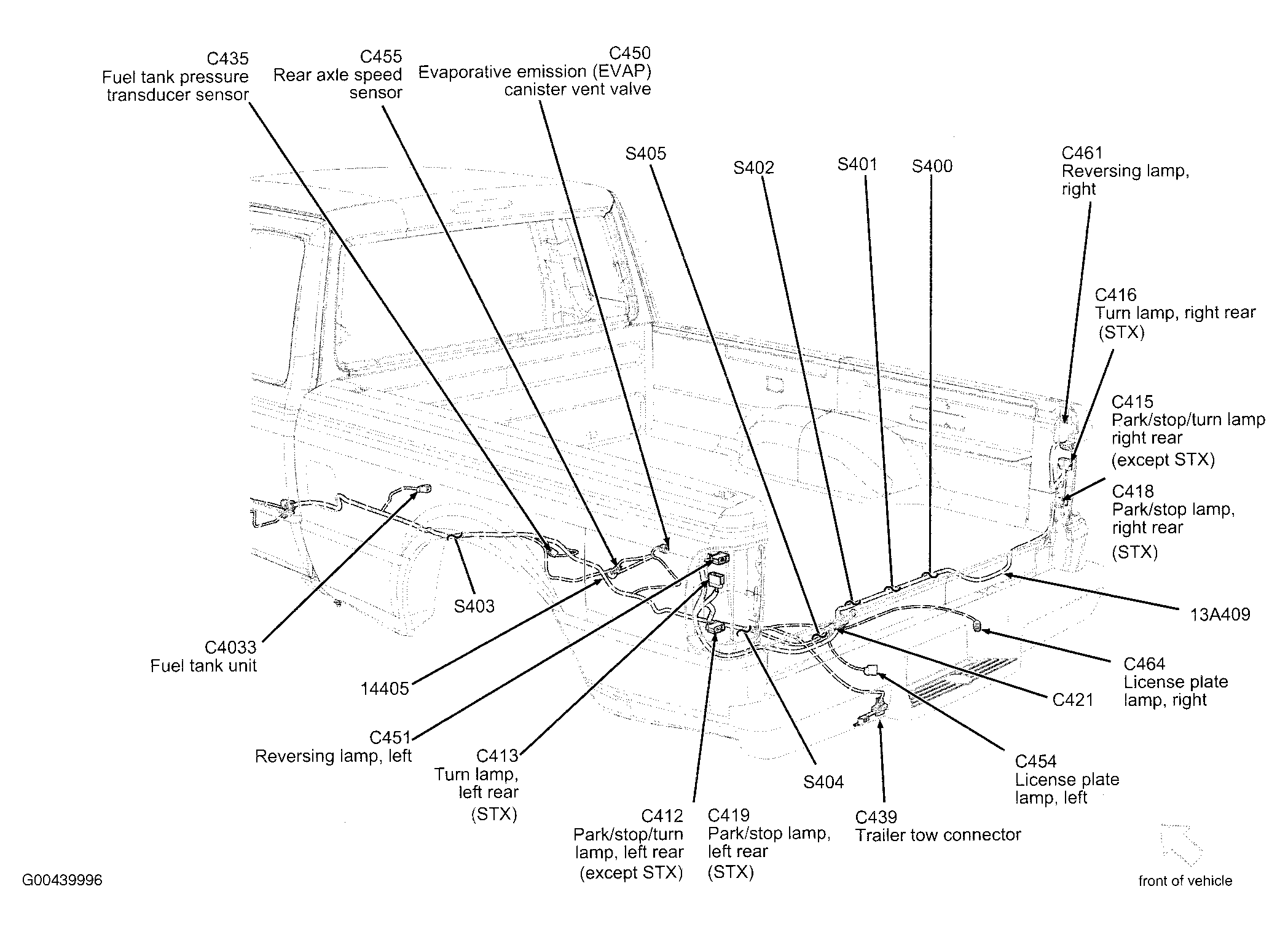

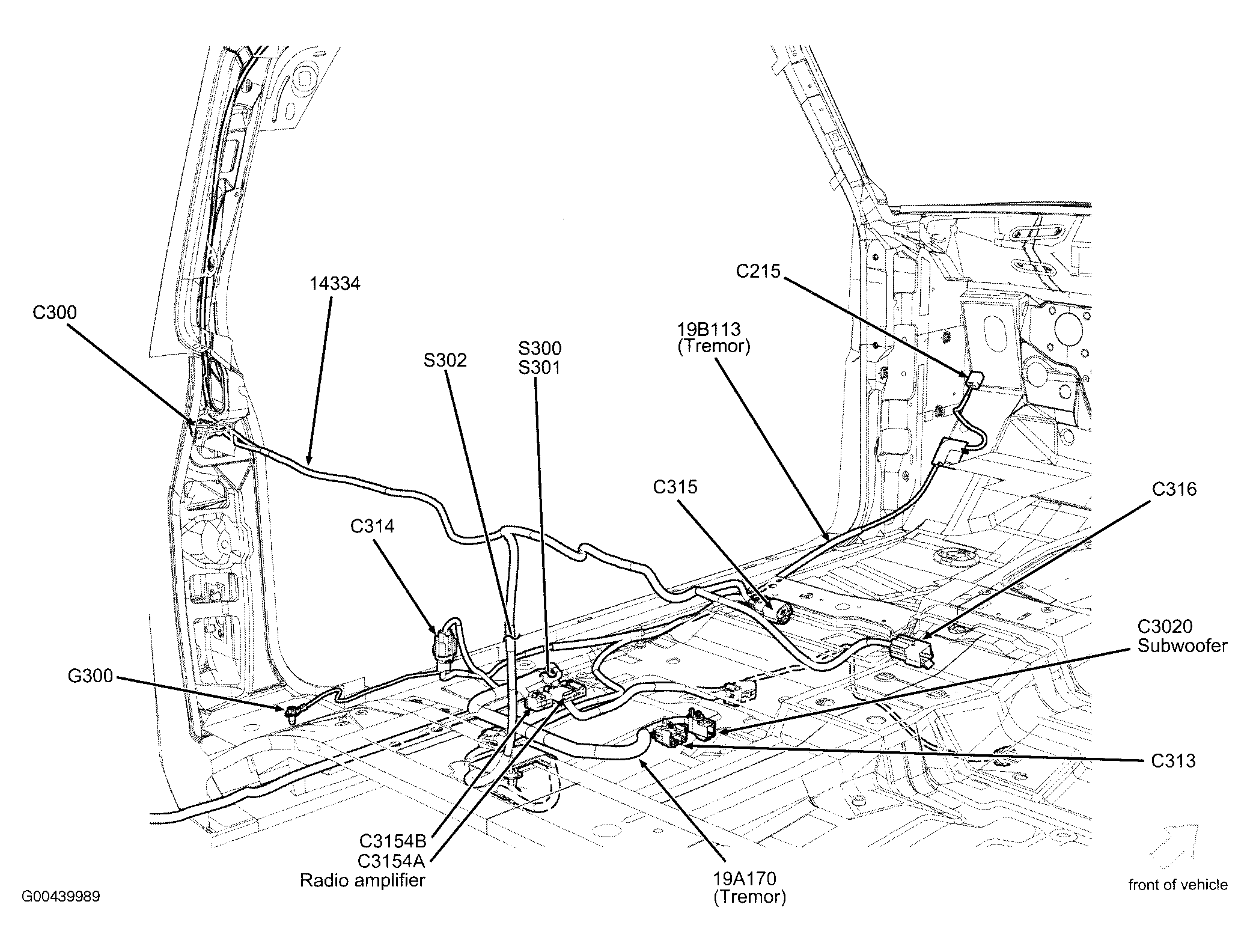

Fig 27: Rear Of Vehicle
Courtesy of FORD MOTOR CO.

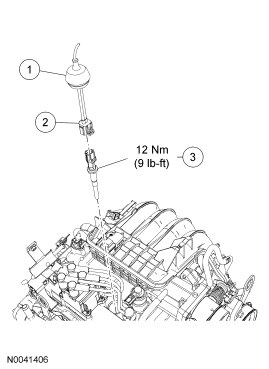

Fig 28: Top Center Of Engine
Courtesy of FORD MOTOR CO.
