Anti-Lock Brake System (ABS) Module: Notes

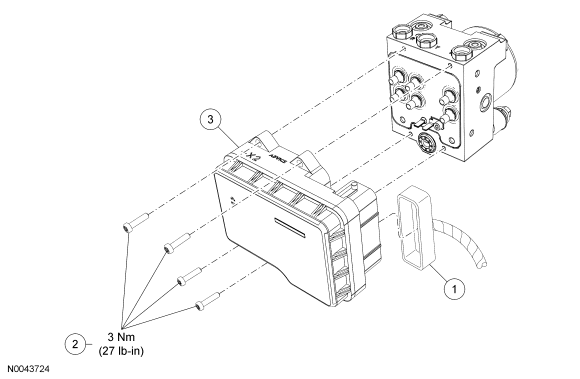

Fig 1: Exploded View Of Anti-Lock Brake System (ABS) Module With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Anti-lock brake system (ABS) module electrical connector
2	-	ABS module bolts (4 required) (part of 2C065)
3	2C065	ABS module
