Engine Ignition Components - Exploded View

NOTE: LH shown, RH similar.

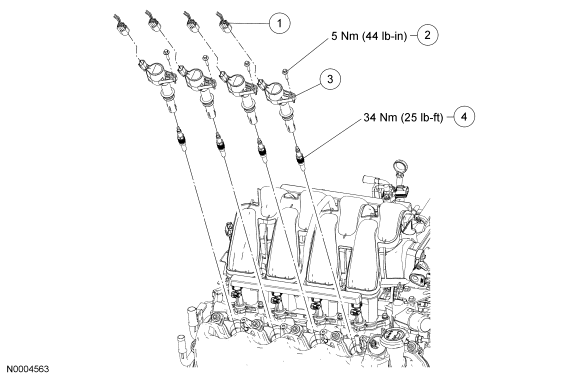

Fig 1: Exploded View Of Engine Ignition Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Ignition coil-on-plug electrical connector (8 required)
2	W706175	Ignition coil-on-plug bolt (8 required)
3	12A366	Ignition coil-on-plug (8 required)
4	12405	Spark plug (8 required)

1. For additional information, refer to appropriate procedures.
