Quarter Panel Speaker: Notes

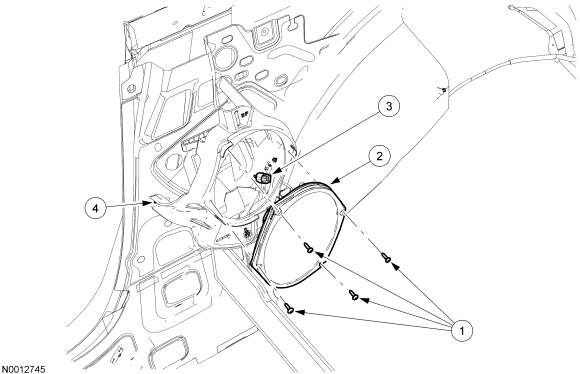

Fig 1: Identifying Quarter Panel Speaker
GF0016088Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709996 Quarter panel speaker screws (4 required)
2 18808 Quarter panel speaker
3 - Quarter panel speaker electrical connector (part of 14A005)
4 W701930 Quarter panel speaker mounting bracket screws (3 required)
