Side Impact Sensor: Notes

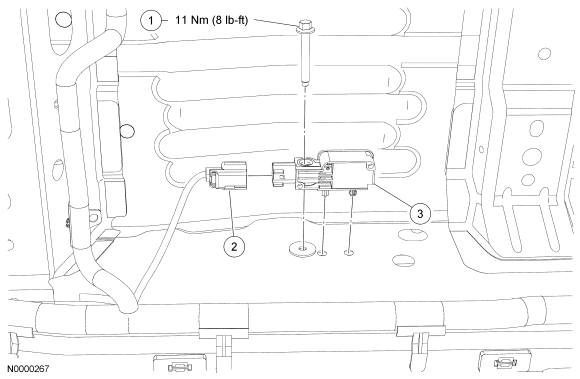

Fig 1: Side Impact Sensor With Torque Specification
GF0015000Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Side impact sensor bolt (part of 14B345)
2 - Side impact sensor electrical connector (part of 14A005)
3 14B345 Side impact sensor
