Passenger Air Bag Module: Notes

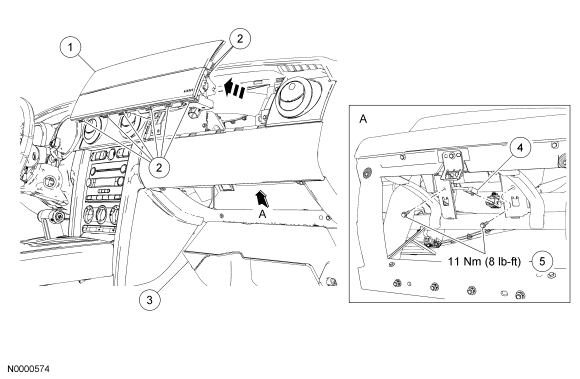

Fig 1: Exploded View Of Passenger Air Bag Module With Torque Specification
GF0014982Courtesy of FORD MOTOR CO.
Item Part Number Description
1 044A74 Passenger air bag module
2 - Passenger air bag module deployment door clips (part of 044A74)
3 - Glove compartment door
4 - Passenger air bag module electrical connector (part of 14401)
5 W505252 Passenger air bag module bolts (2 required)
