Global Positioning System (GPS) Antenna: Notes

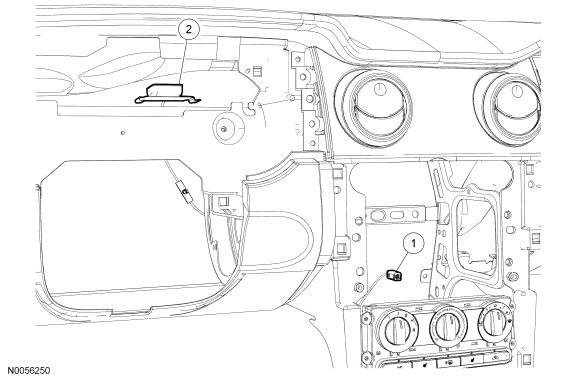

Fig 1: Identifying Global Positioning System (GPS) Antenna
GF0001371Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - GPS antenna-to-audio unit electrical connector (part of 10E893)
2 10E893 GPS antenna
