Intake Manifold Runner Control Connector

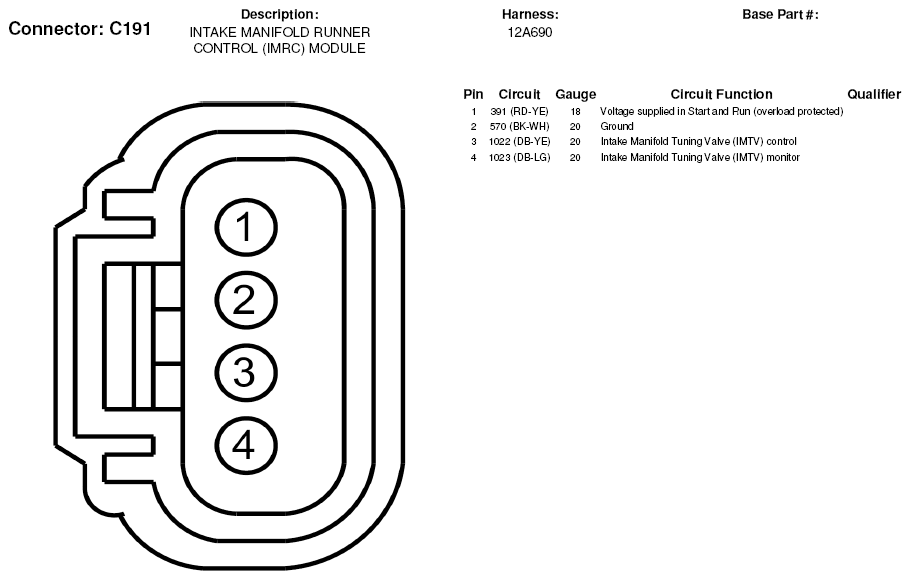

Fig 1: Intake Manifold Runner Control Connector End View (C191)

G05183189

Courtesy of FORD MOTOR CO.
