Window Glass - Rear: Notes
Material
| Item | Specification |
|---|---|
| DOW AUTOMOTIVE 2-HOUR CURE |
|
| Dow Urethane Adhesive Betaseal® Express |
- |
| Dow Urethane One Step Glass Primer Betaprime® 5500 / 5500A / 5500SA |
- |
| SIKA 2-HOUR CURE |
|
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

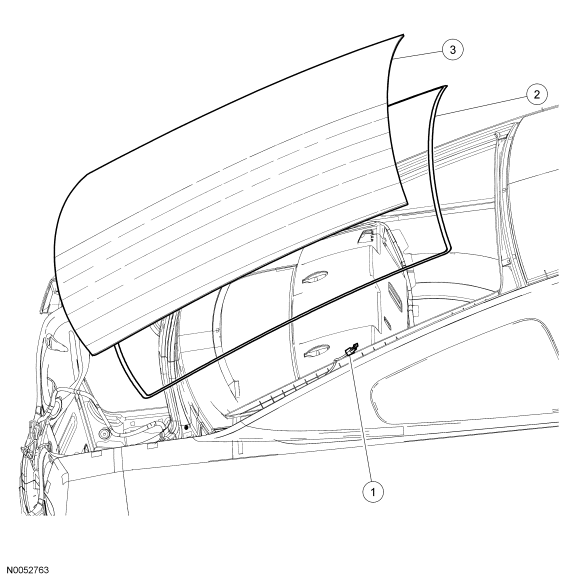

NOTE:
The luggage compartment lid is not shown for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Heated rear window electrical connector (part of 14A005) |
| 2 | - | Urethane adhesive |
| 3 | 6342006 | Rear window glass |
