Convertible Top - Exploded View

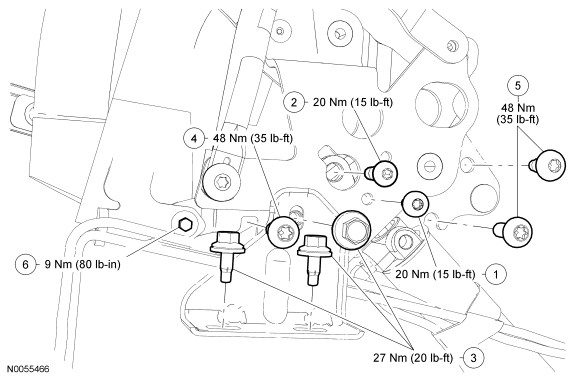

Fig 1: Exploded View Of Convertible Top Assembly With Torque Specifications (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W709053	Hydraulic lift cylinder bracket bolt (2 required)
2	N808519	Clevis-to-hydraulic lift cylinder rod bolt (2 required)
3	W711423	L-bracket bolts (6 required)
4	W711772	Pivot bracket rear bolt (2 required)
5	W711393	Pivot bracket front bolts (4 required)
6	W506413	Convertible top frame No. 5 bow pivot bolt (2 required)

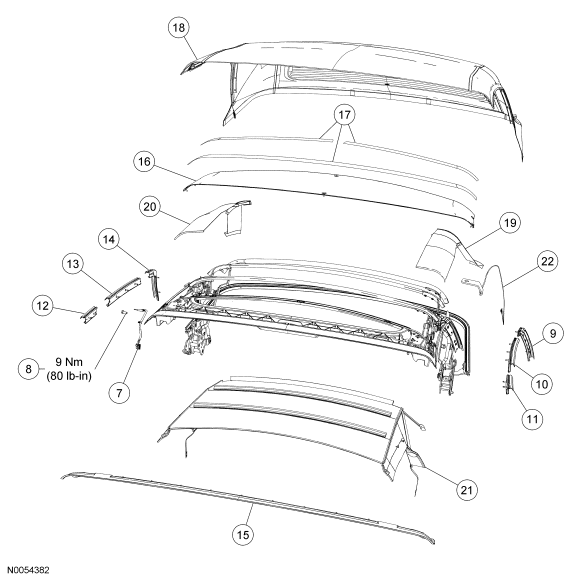

Fig 2: Exploded View Of Convertible Top Assembly With Torque Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
7	14018	Convertible top ajar switch
8	-	Convertible top ajar switch screw
9	7651555	LH rear weatherstrip retainer channel
10	7651561	LH center weatherstrip retainer channel
11	7651543	LH front weatherstrip retainer channel
12	7651542	RH front weatherstrip retainer channel
13	7651560	RH center weatherstrip retainer channel
14	7651554	RH rear weatherstrip retainer channel
15	76514A34	Compression panel
16	-	Header form panel (part of 7653038)
17	-	Double-sided tape
18	7652700	Top cover assembly
19	7654212	LH stay pad
20	7654213	RH stay pad
21	7651916	Convertible top headliner
22	7652806 RH/ 7652807 LH	Convertible top tension cable

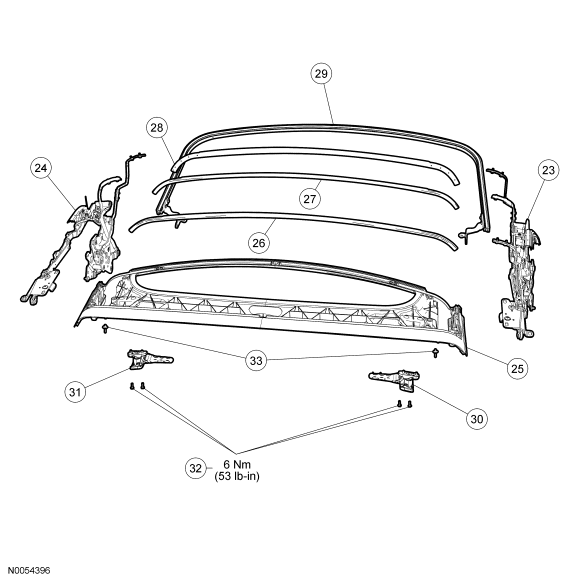

Fig 3: Exploded View Of Convertible Top Assembly With Torque Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
23	7653105	Convertible top frame LH side rail
24	7653104	Convertible top frame RH side rail
25	7653024	Convertible top frame No. 1 bow
26	7651274	Convertible top frame No. 2 bow
27	7651269	Convertible top frame No. 3 bow
28	7652178	Convertible top frame No. 4 bow
29	7652188	Convertible top frame No. 5 bow
30	7650508-B	LH convertible top latch
31	7650508-A	RH convertible top latch
32	-	Convertible top latch screws (4 required)
33	76514A38	Dowel pins (2 required)
