Seat Backrest - Rear: Notes

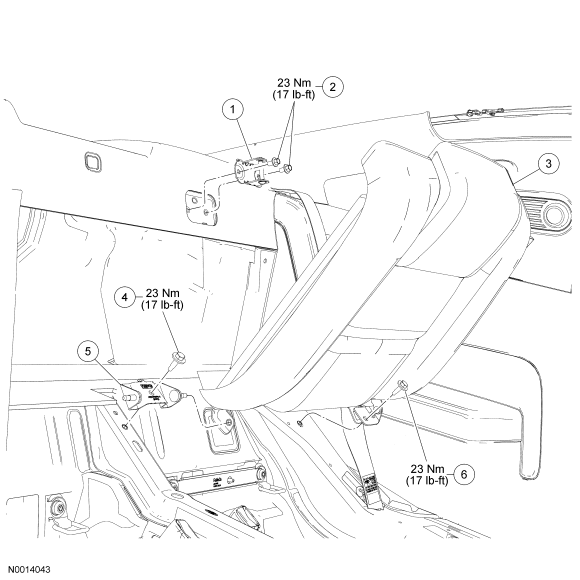

Fig 1: Rear Seat Backrest With Torque Specifications - Coupe
GF0014774Courtesy of FORD MOTOR CO.
Item Part Number Description
1 62452 Backrest striker
2 W505260 Backrest striker bolts
3 - Backrest assembly
4 W505433 Backrest pivot bracket bolt
5 60615 Backrest pivot bracket
6 W505433 Backrest-to-floor bolt

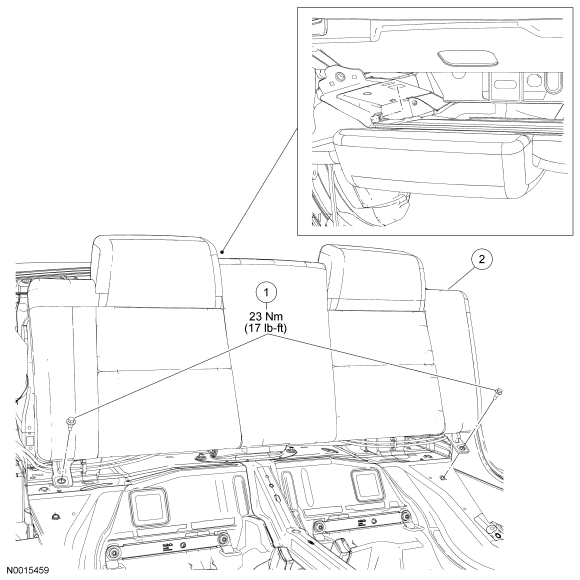

Fig 2: Rear Seat Backrest With Torque Specification - Convertible
GF0014775Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W505433 Backrest-to-floor bolts
2 - Backrest assembly
