Ignition Lock Cylinder: Notes

Material

Item Specification
Penetrating and Lock Lubricant
XL-1		 -

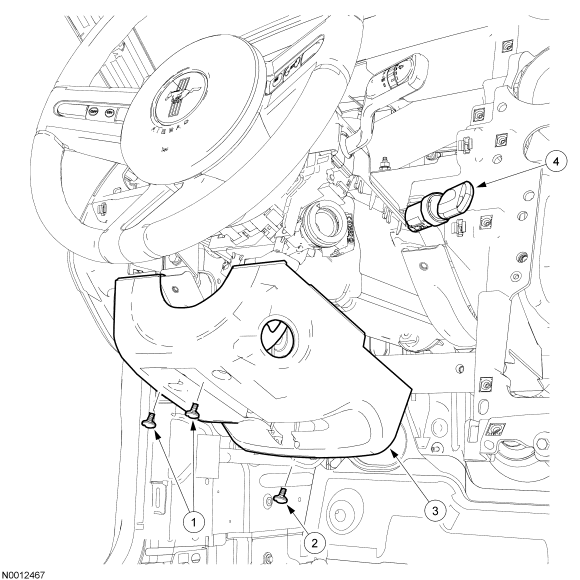

Fig 1: Identifying Ignition Lock Cylinder
GF0014859Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W702110 Lower steering column shroud screws (2 required)
2 W706731 Lower steering column shroud screw
3 3533 Lower steering column shroud
4 11582 Ignition lock cylinder
